Advanced 2-Shot Mold
Manufacturing Experts
Delivering high-precision, multi-material injection molding solutions. From in-house 24H DFM analysis to T1 samples in 15 days, we engineer reliability into every component.
Mastering the Complexity of
2-Shot Injection Molding

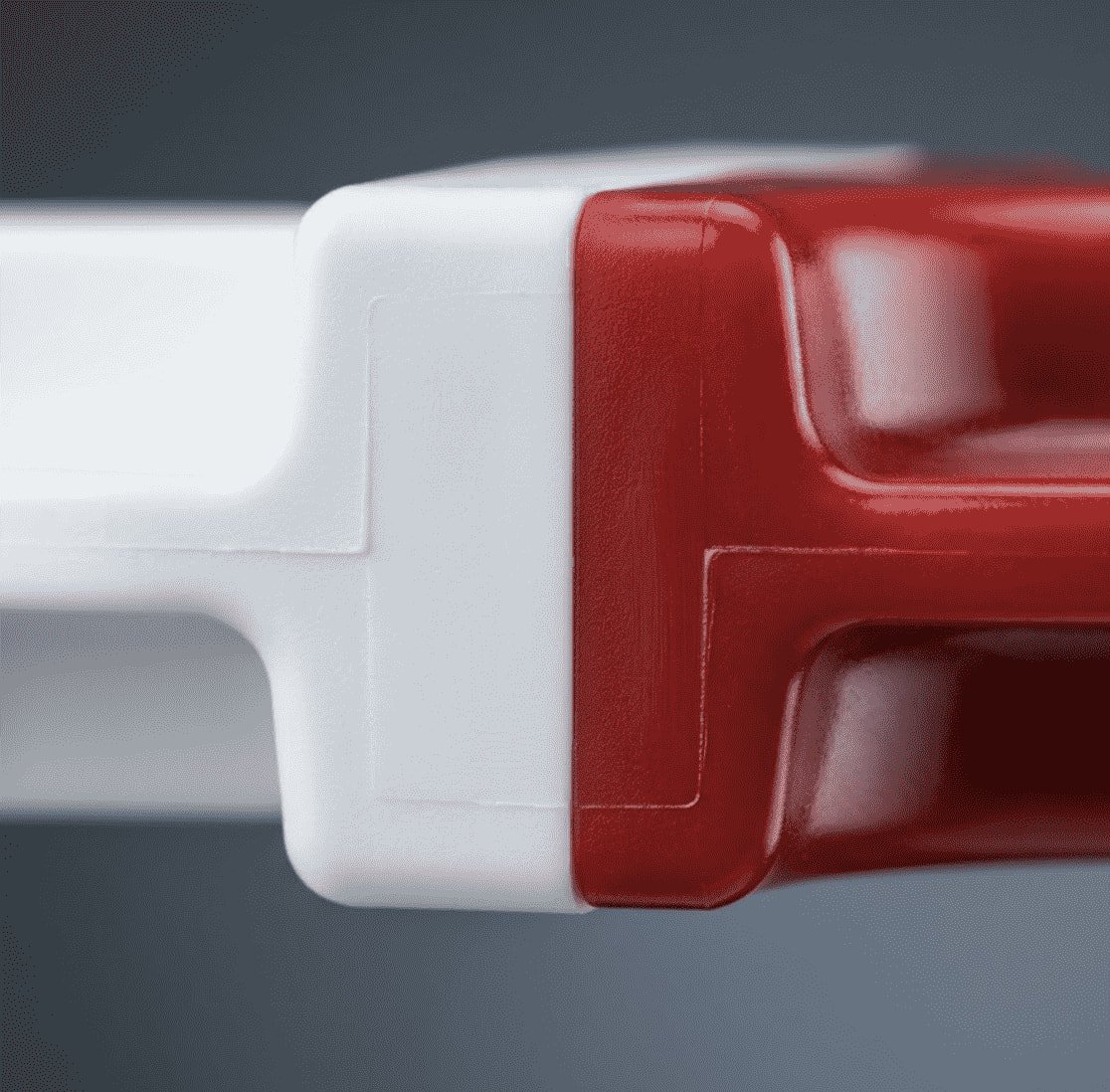

Two-shot molding (or dual-shot) is an advanced manufacturing process that molds two different plastic resins into a single, integrated part within one machine cycle. This technology eliminates secondary assembly, enhances product durability, and allows for complex ergonomic designs.
-
Cost & Time Efficiency
Eliminates post-molding assembly steps, significantly reducing labor costs and cycle times.
-
Superior Bond Integrity
Chemical and mechanical bonding between materials ensures optimal part strength and longevity.
-
Enhanced Aesthetics & Function

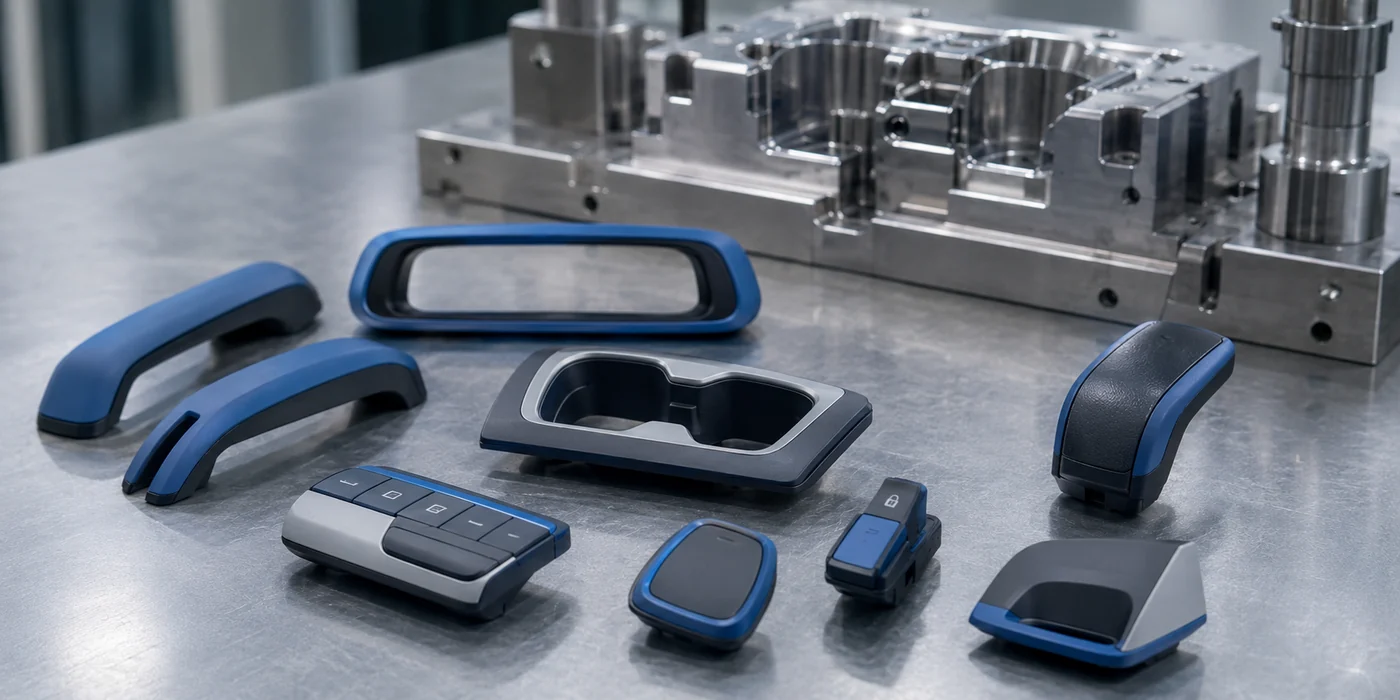

Combine rigid substrates with soft-touch overmolds or multi-color combinations effortlessly.
Custom 2-Shot Molded Components
Showcasing our precision engineering across diverse industrial applications.
Industry-Specific Tooling Solutions
Automotive & Mobility
The automotive sector demands uncompromising durability and aesthetic perfection. Our dual-shot molds are engineered to produce complex interior trims, functional sealing components, and lighting assemblies that meet strict TS16949 standards.
- Light-guiding components
- Soft-touch control panels

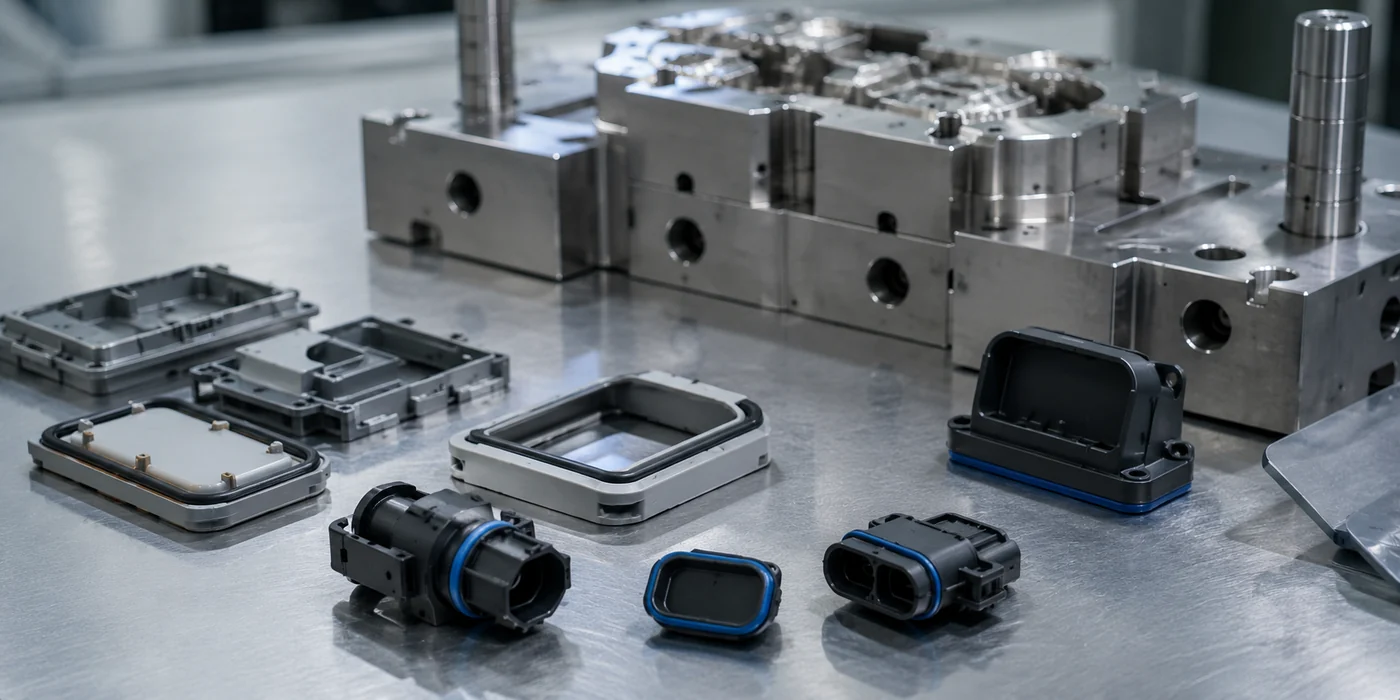

- Integrated sealing gaskets
Medical & Healthcare
Precision is non-negotiable in medical manufacturing. We design molds for cleanroom injection molding, focusing on biocompatible materials, flawless parting lines, and absolute repeatability for critical healthcare devices.
- Surgical instrument handles
- Wearable monitor housings
- Drug delivery systems
The GBM Engineering Advantage
Why global manufacturers trust us for their most complex tooling requirements.
24H DFM Analysis
Our engineering team provides comprehensive Design for Manufacturability (DFM) reports within 24 hours, optimizing mold structure before steel is cut.
Rapid T1 Sampling
Accelerate your time-to-market. With our streamlined in-house manufacturing, we deliver T1 samples in as fast as 15 days for standard complexity molds.
Stringent QA Protocols
Equipped with CMM, optical projectors, and hardness testers. Every mold undergoes rigorous inspection to guarantee ±0.002mm machining precision.
State-of-the-Art Facility
Our manufacturing floor is equipped with top-tier imported CNC, EDM, and multi-shot injection machines, ensuring uncompromised quality control from tooling to production.
Trusted by Global Brands & Utilizing Premium Resins
Material Compatibility in 2-Shot Molding
The success of a two-shot injection molded part relies heavily on the chemical and mechanical compatibility of the chosen resins. If materials do not bond properly, the part will fail in the field. At GBM Mold Technology, our material scientists work closely with your design team to select the optimal substrate and overmold combinations.
Common Successful Combinations:
- PC + TPU/TPE: Excellent for rigid structural components requiring a soft, ergonomic grip (e.g., power tools, medical devices).
- ABS + TPE: Cost-effective solution for consumer electronics and household appliances.
- PC + LSR (Liquid Silicone Rubber): The gold standard for medical applications requiring sterilization and superior sealing.
Beyond chemical adhesion, factors such as melt temperature, shrinkage rates, and wall thickness must be precisely calculated during the mold design phase. Our proprietary DFM process simulates these variables to ensure dimensional stability and zero defect rates in mass production.
Core Rotary & Indexing Mechanisms in 2-Shot Molding
The defining characteristic of a two-shot mold, distinguishing it from single-shot tooling, is its complex internal rotation or translation mechanisms. At GBM Mold Technology, leveraging our 10+ years of expertise, we engineer these systems for absolute ±0.002mm precision and longevity.
Rotary Platen
The entire moving half of the mold rotates 180 degrees. This is the most robust and common method, providing excellent cooling and ejection capabilities for both shots simultaneously.
Index Plate
An internal plate within the mold rotates the molded first shot to the second cavity. The mold base remains stationary while the internal mechanism handles the transfer.
Core Toggle / Retraction
Instead of rotating the part, a section of the core retracts or toggles after the first shot, creating a void for the second material to be injected.
Mastering Flash & Bleed Prevention
Cross-color contamination (bleed) and flash are the most critical pain points in 2-shot molding. At the DFM and mold design stages, we deploy rigorous structural strategies to ensure pristine material separation.
High-Precision Parting Surface Control
Strategic Pre-Load (Crush) Design
Moldflow Analysis & Venting Optimization
Solve Your 2-Shot Challenges
Submit your 3D CAD files today. Our engineering team will provide a comprehensive DFM analysis within 24 hours to validate your mechanism selection and prevent tooling risks. Discuss your 2-shot application, material requirements, or current flash/bleed issues with our experts.
Email Us
Annie@gbminjection.com
Call Us
+86 15268369865
Location
Room 101, Jiumo Tech Park, Gangsheng Rd, Baoan, Shenzhen
Hardcore Material Compatibility Matrix
The key to successful 2-shot molding is achieving perfect Chemical Bonding between the substrate and overmold, not just mechanical interlocking. Use our authoritative matrix below to ensure your material selection guarantees structural integrity.
Perfect Bonding (Chemical)
Achieved when materials share similar molecular polarities, allowing them to fuse seamlessly at the melt interface without additional design features. Example: PC + TPU, ABS + TPE
Mechanical Interlock Needed
Required when materials lack natural chemical affinity. The mold must be designed with undercuts, through-holes, or grooves to physically anchor the soft resin. Example: POM + TPE, PA + Standard TPU
Overmolding Compatibility Table
| Substrate (Hard) \ Overmold (Soft) | TPE (Thermoplastic Elastomer) | TPU (Thermoplastic Polyurethane) | Silicone (Standard LSR) | TPR (Thermoplastic Rubber) |
|---|---|---|---|---|
| ABS | ✓ | ✓ | ! | ✓ |
| PC (Polycarbonate) | ✓ | ✓ | ! | ✓ |
| PC/ABS Blend | ✓ | ✓ | ! | ✓ |
| PP (Polypropylene) | ✓ Specific Grades | ✗ | ! | ✓ |
| PA (Nylon) | ! Special TPE Req. | ✓ | ! | ! |
| POM (Acetal) | ✗ Interlock Only | ✗ | ✗ | ✗ |
Disclaimer: This matrix serves as a general industry guideline. Actual bonding strength depends heavily on specific material grades, processing temperatures, injection speed, and mold design. Self-adhesive LSR grades will exhibit different bonding properties than standard LSR.
Verify Your Material Selection
Don't risk delamination or product failure. Submit your proposed substrate and overmold combination, and our tooling engineers will provide a Free Compatibility & DFM Analysis within 24 hours.
Frequently Asked Questions
Find answers to common technical queries regarding our tooling processes, lead times, and engineering capabilities.
Ask a Technical QuestionDepending on the complexity and size of the part, standard lead times for T1 samples range from 4 to 6 weeks. However, with our expedited in-house tooling capabilities, we can achieve T1 in as little as 15 days for specific project requirements.
Yes, absolute. We provide a comprehensive DFM analysis within 24 hours of receiving your 3D CAD files. This includes mold flow analysis, draft angle verification, wall thickness checks, and material compatibility suggestions to ensure successful 2-shot molding.
Our facility is equipped with dedicated 2-shot injection molding machines ranging from 120 Tons to 800 Tons, featuring rotary platens and index plates to accommodate various mold sizes and part geometries.
Yes, over 70% of our molds are exported to North America and Europe. We strictly adhere to SPI, HASCO, and DME standards, using premium mold steel (e.g., Assab, Schmolz+Bickenbach) to guarantee mold life up to 1,000,000 shots.
