Automotive Injection Mold Manufacturing for Vehicle Plastic Parts
Tooling and molding for trims, panels, connectors, housings, and fluid systems.
Vehicle plastic components face strict constraints. We assess material shrinkage, optimize gate locations, control warpage with Moldflow, and ensure precise mold design from DFM to pilot run.
Send 2D/3D CAD (STEP/IGES), material grade, expected annual volume, and surface finish requirements for an itemized DFM review.
Automotive Tooling Specifications
| Molded Parts: | Interior dashboards, exterior bumper covers, wire harness clips, engine brackets, HVAC ducts, and fluid reservoirs. |
|---|---|
| Mold Type: | Prototype tooling for fit-check, multi-cavity production molds, family molds, insert molds for threaded brass, and 2K rotating molds. |
| Material Options: | PP, PC/ABS, PA6/PA66 (up to 50% GF), POM, PBT, PPS, PEEK, and TPE/TPU overmolding compounds. |
| Surface Requirements: | VDI/MT texture matching, high-gloss polishing for optical lenses, matte finish, and hidden functional surfaces. |
| Key Design Points: | Hot/cold runner balance, conformal cooling for thick sections, venting for flash control, and calculated shrinkage allowance. |
| Validation Support: | DFM reports, Moldflow simulation for large panels, T1 visual samples, CMM dimensional data, and assembly interference checks. |
| Production Focus: | Cycle time optimization, cavity-to-cavity consistency, insert alignment, and automated ejection reliability. |
| Project Documents: | 2D mold layouts, steel certificates, trial injection parameters, and maintenance guidelines for export molds. |
Need a tooling plan for your vehicle components?
Send your STEP/IGES files for a DFM evaluation and tooling cost breakdown.
Request Engineering Review

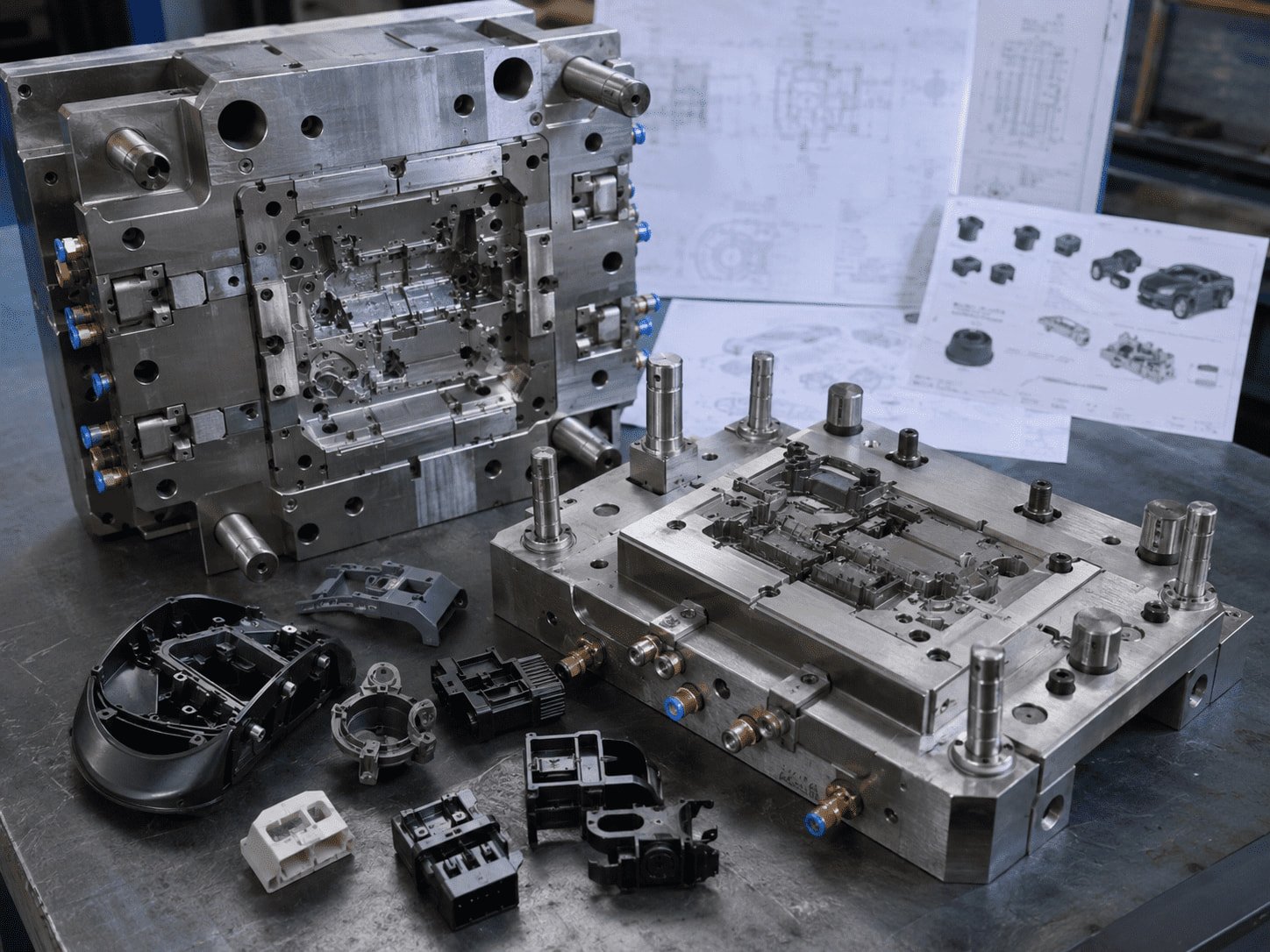

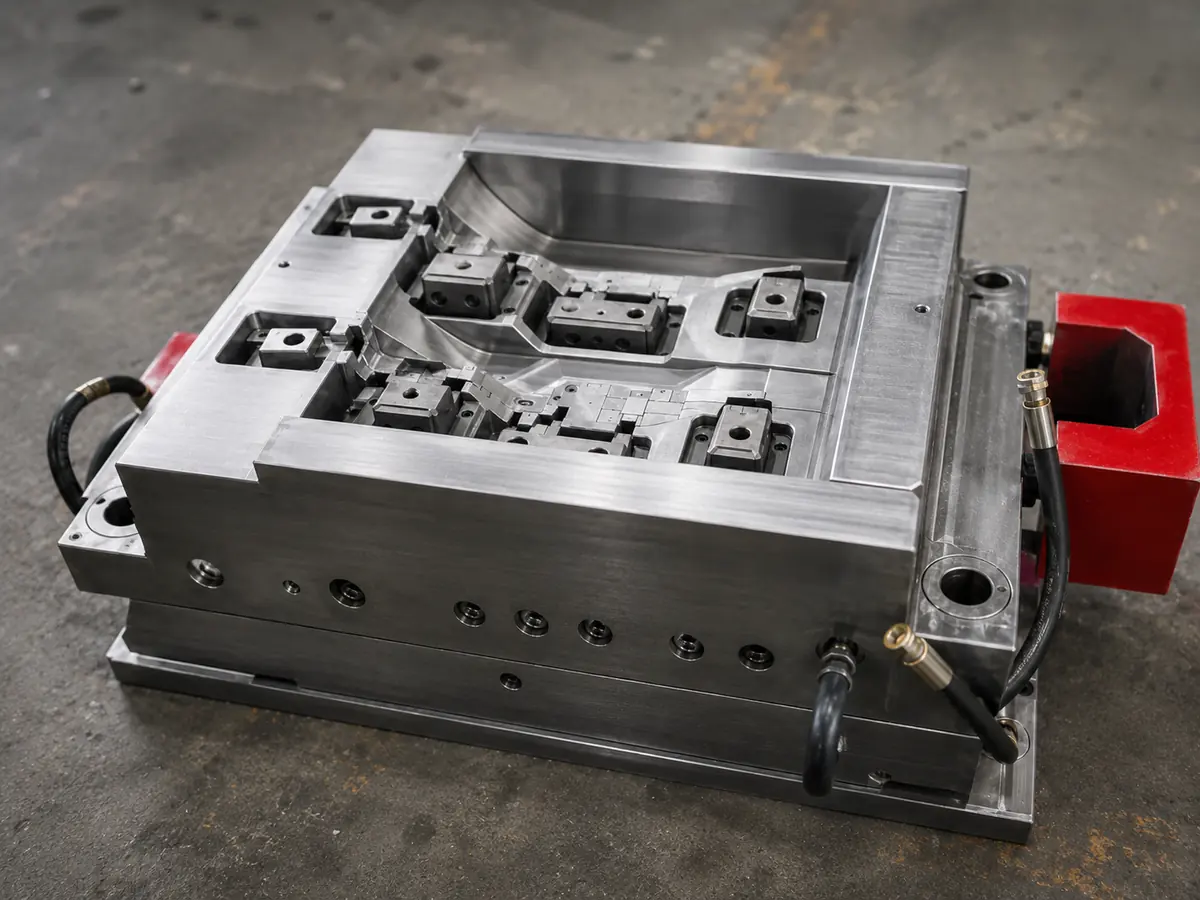

Understanding Automotive Injection Tooling
Unlike standard consumer plastic tooling, vehicle component molds must account for severe environmental exposure, tight assembly tolerances, and long-term dimensional stability. When a dashboard panel or under-hood bracket fails to fit the mating chassis, production halts. We align the steel selection, cooling layout, and ejection mechanism with your specific resin and mounting requirements.
Converts raw automotive-grade resin pellets into dimensionally stable, repeatable components.
Engineered specifically for the thermal and mechanical loads of interior, exterior, and under-hood environments.
Gate locations and parting lines are positioned to avoid cosmetic defects on visible Class-A surfaces.
For multi-pin connectors, cavity balance and micro-venting prevent short shots and flash.
Large panels require structural ribs and conformal cooling to mitigate warpage and sink marks.
Uncertain if your part geometry is ready for steel cutting?
Send CAD for DFM CheckAutomotive Injection Mold Types We Build

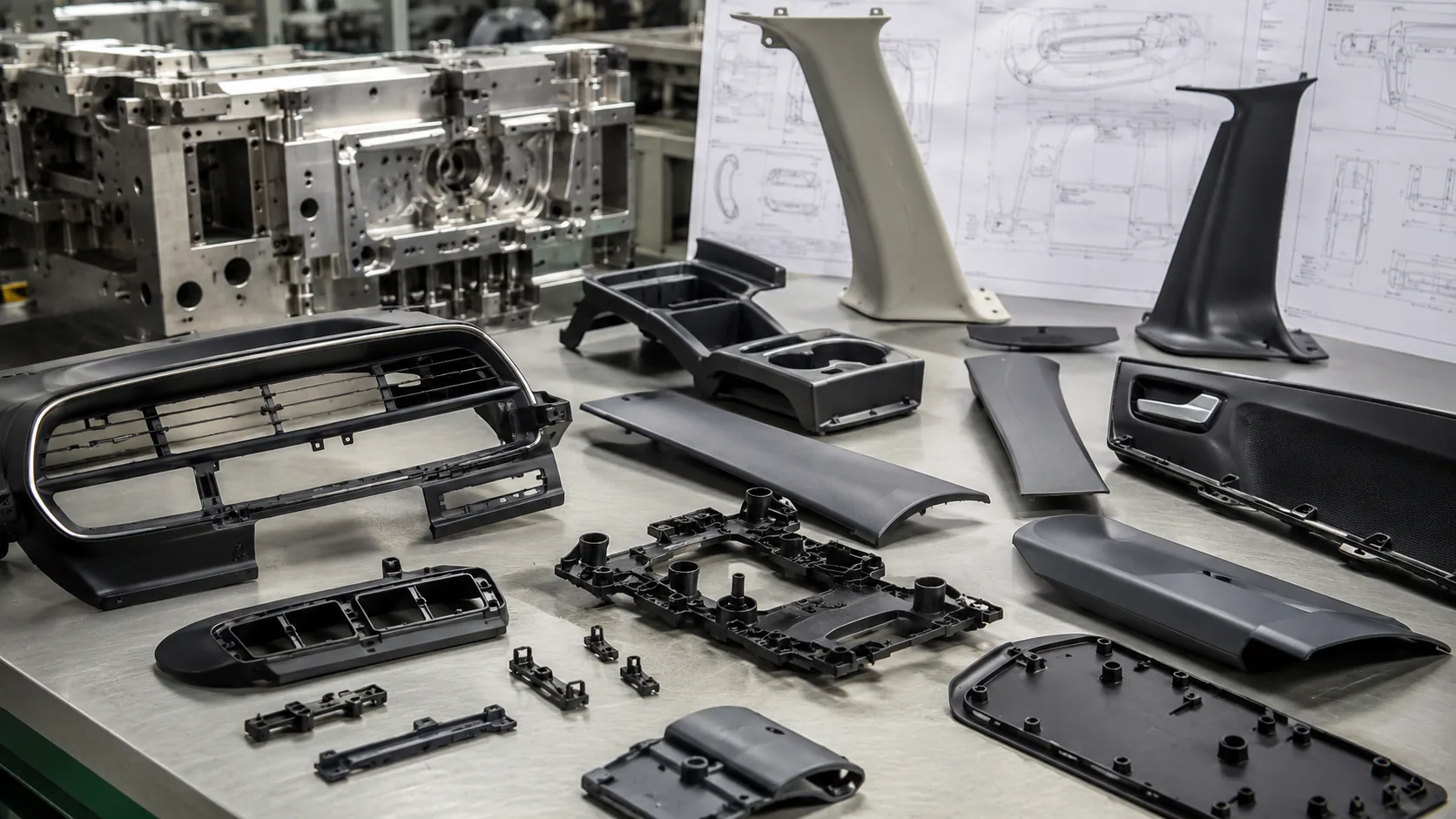

Interior Trim Tooling
Parts: Consoles, door panels, pillars, and mounting brackets.
Constraint & Solution: Visible surfaces require consistent VDI texture without flow marks. We optimize gate placement and uniform cooling channels.
Benefit: Reduces cosmetic rejections and ensures seamless dashboard assembly.

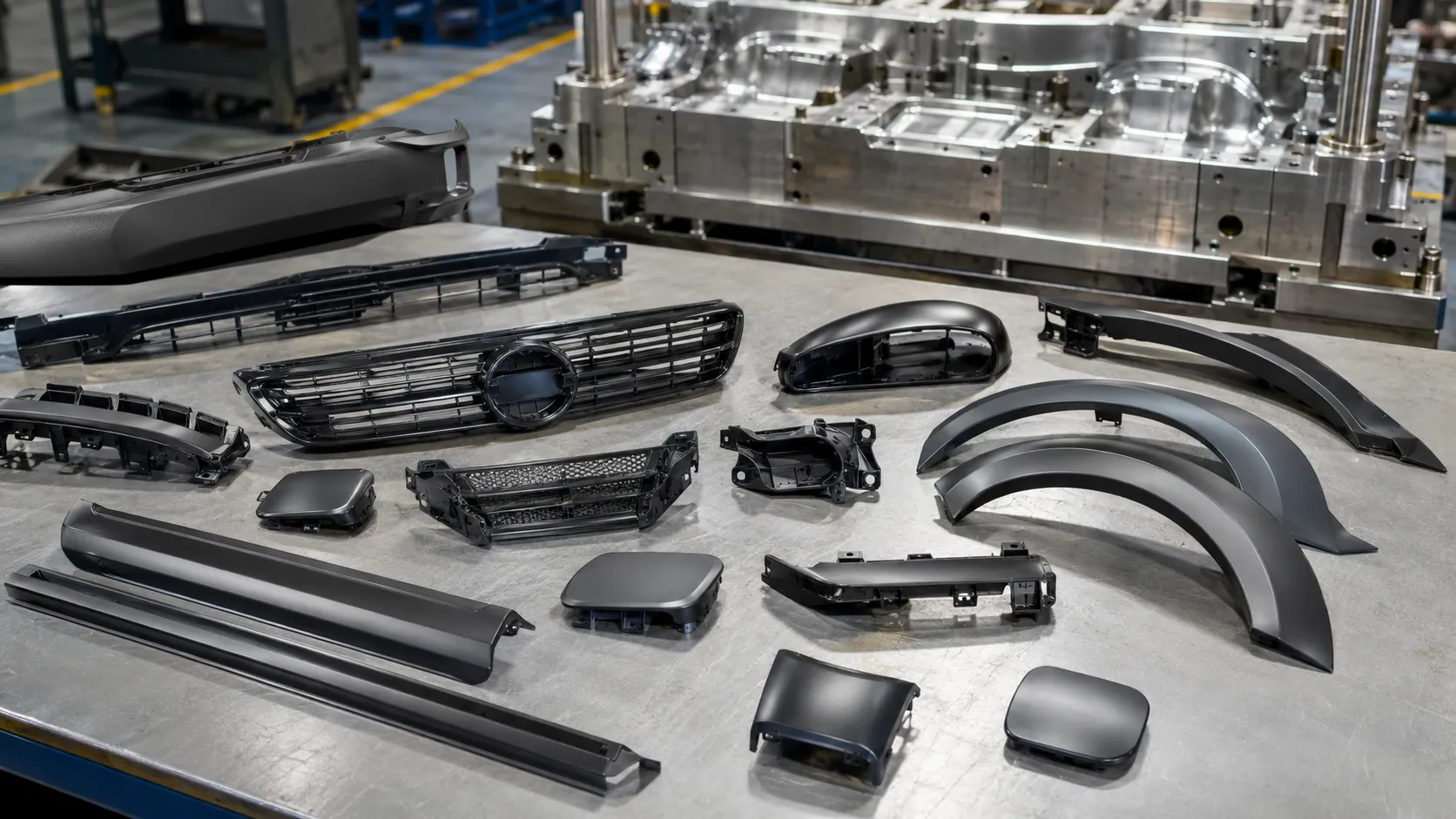

Exterior Panel Tooling
Parts: Grilles, mirror housings, and fender trims.
Constraint & Solution: UV exposure and impact resistance demand specific resins that shrink unevenly. We utilize warpage simulation and strategic ribbing.
Benefit: Maintains panel gap tolerances across temperature variations.

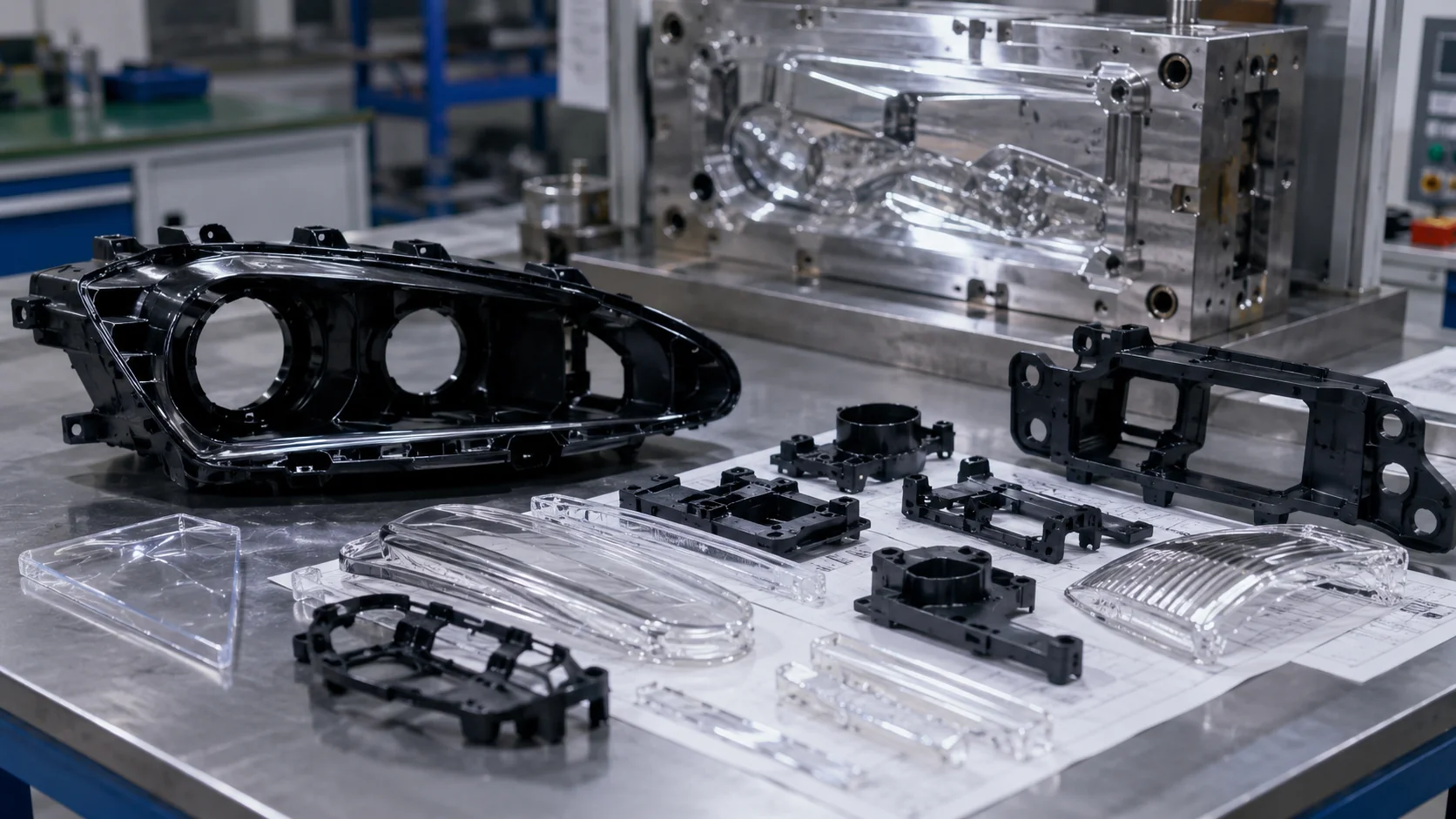

Lighting & Lens Tooling
Parts: Headlamp housings, light guides, and reflectors.
Constraint & Solution: Optical clarity and heat resistance require zero contamination. We apply SPI A2 polishing and dedicated hot runners.
Benefit: Ensures photometric compliance and prevents lens yellowing.

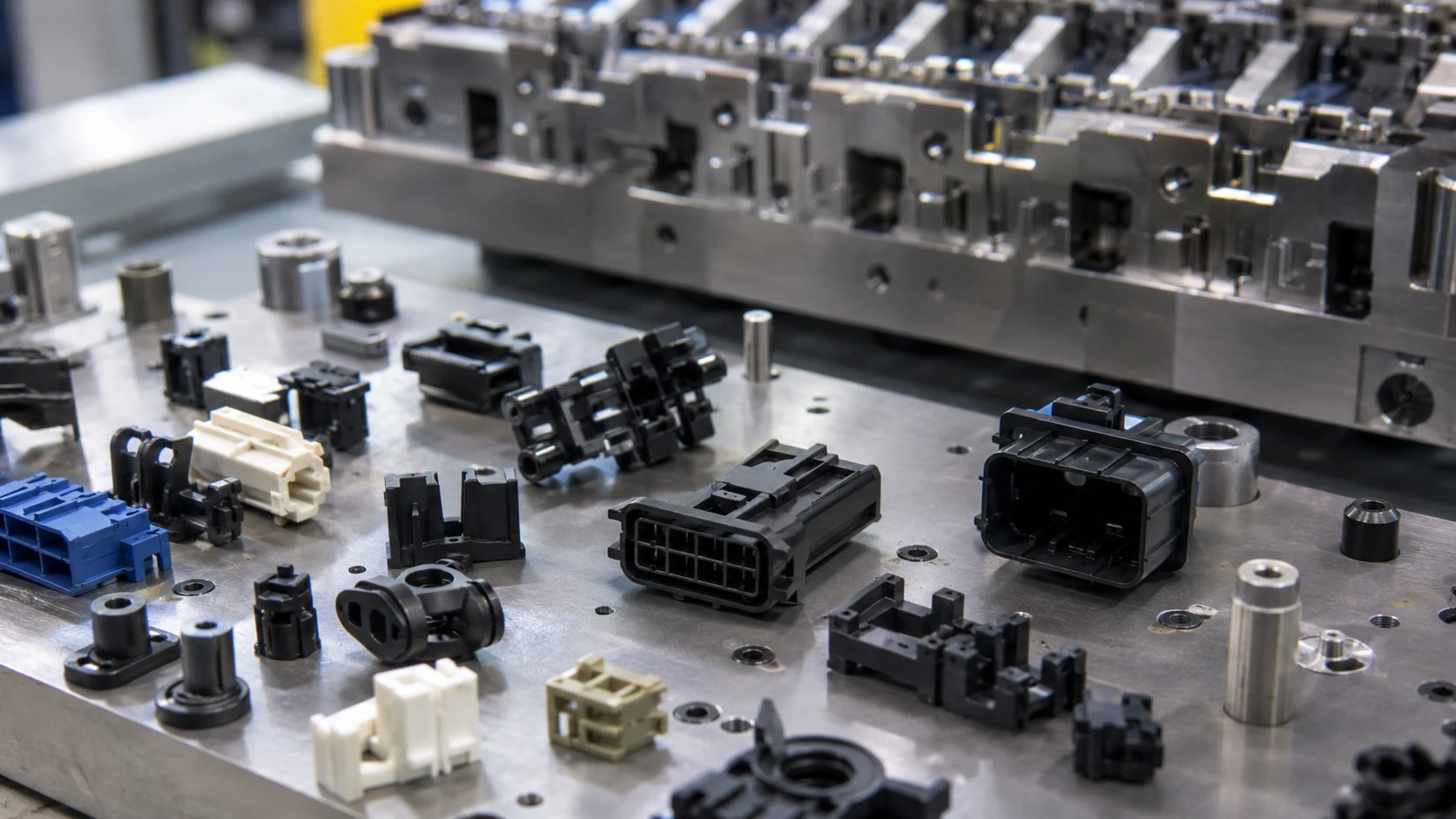

Wire Harness Connector Tooling
Parts: Terminal housings, sensor brackets, and cable clips.
Constraint & Solution: Micro-pins and thin walls require tight tolerances. We use high-precision wire EDM for cavity inserts and balanced runners.
Benefit: Secures electrical continuity and passes pull-force testing.

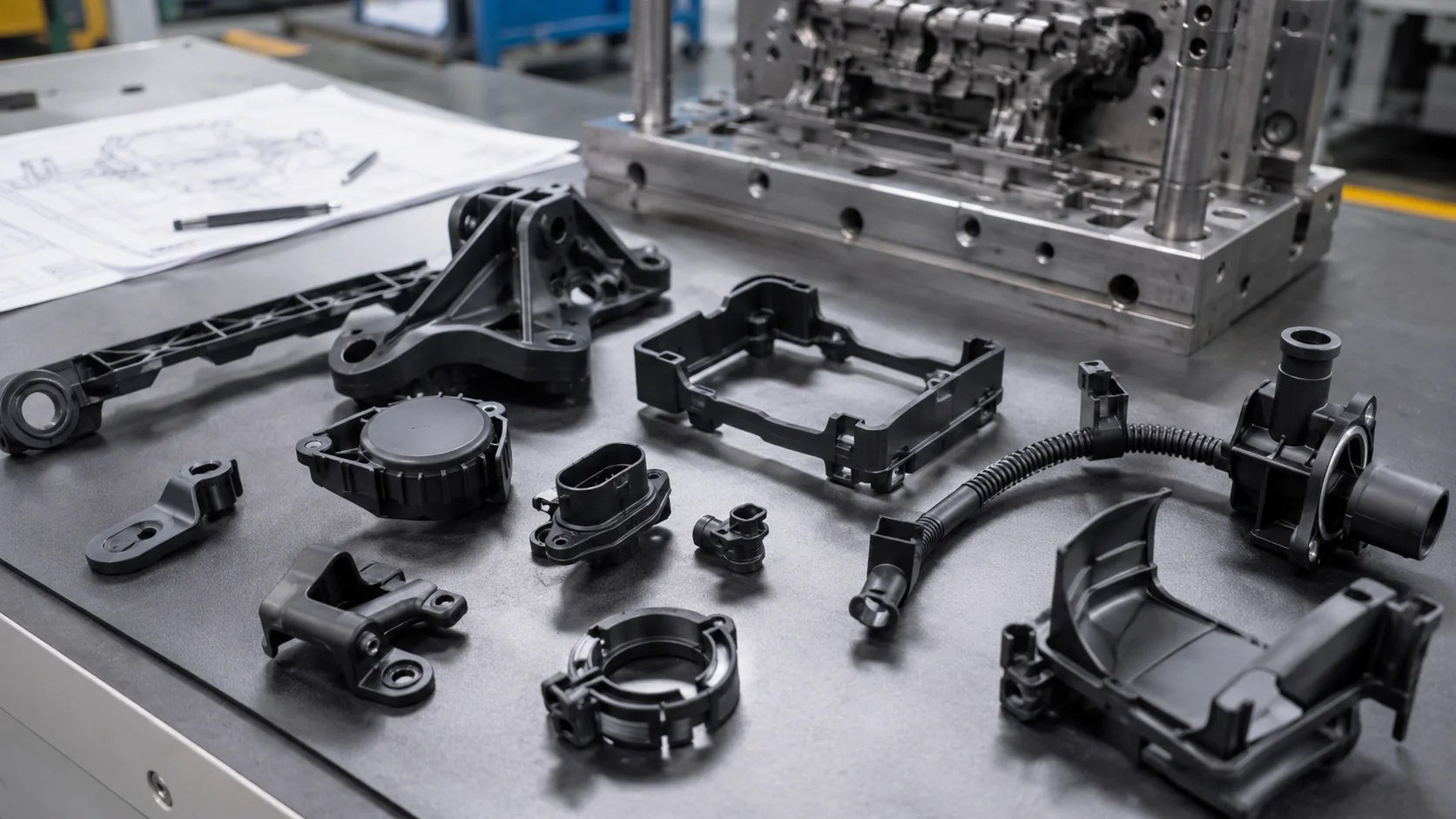

Under-Hood Component Tooling
Parts: Engine covers, fluid caps, and heat shields.
Constraint & Solution: Continuous exposure to 120°C+ heat and fluids. We design tooling for high-shrinkage PA66+GF or PPS with robust venting.
Benefit: Prevents structural degradation and fluid leaks.
Fluid System Tooling
Parts: Washer reservoirs, expansion tanks, and pump housings.
Constraint & Solution: Complex geometries require welding, demanding flat mating surfaces. We apply strict warpage control and optimized ejection.
Benefit: Guarantees hermetic sealing during ultrasonic or hot-plate welding.

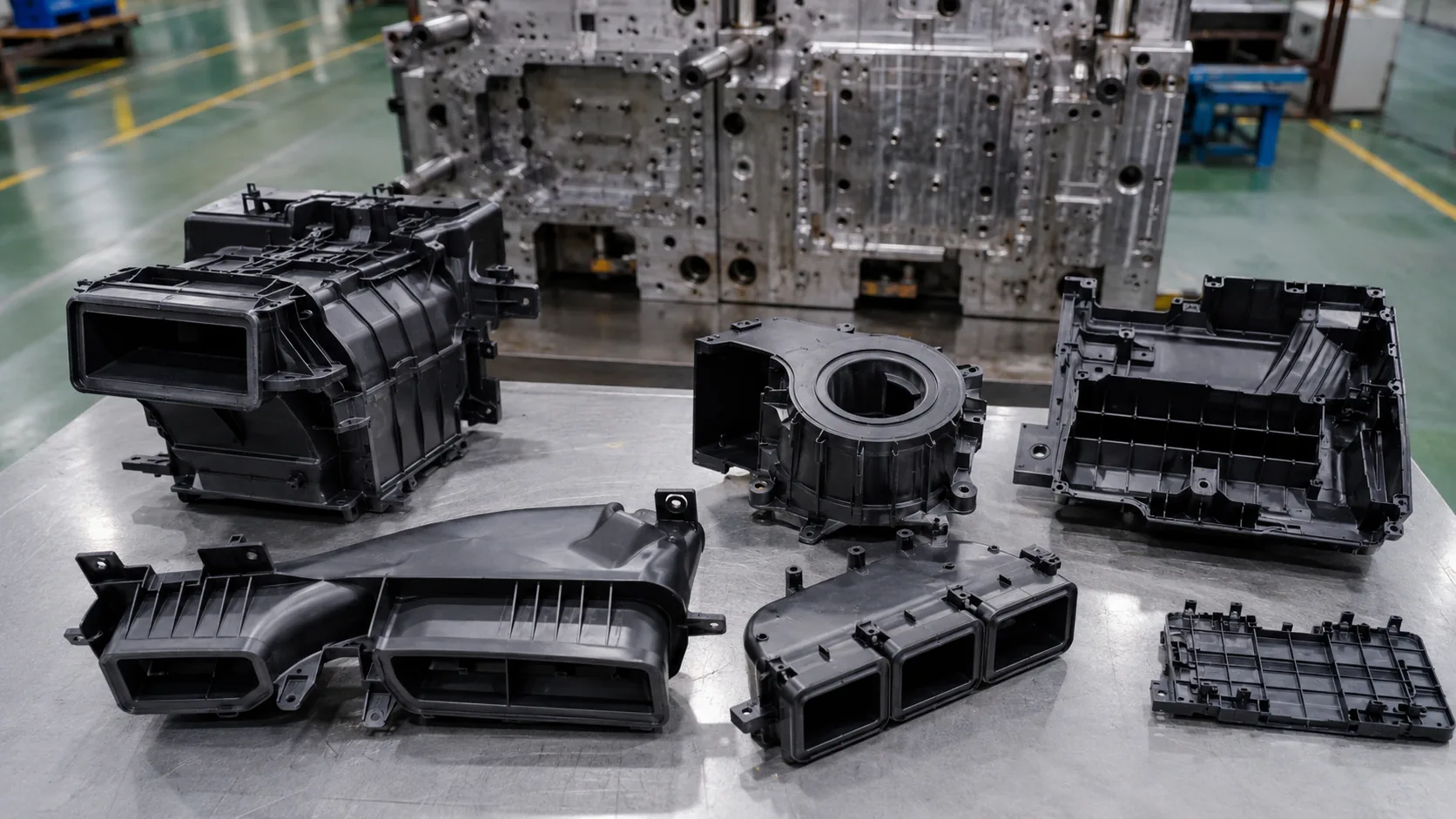

HVAC Duct Tooling
Parts: Air distribution ducts, vents, and blower housings.
Constraint & Solution: Large, thin-walled hollow shapes are prone to short shots. We engineer multi-point gating and extensive cooling circuits.
Benefit: Ensures stable airflow channels and rattle-free dashboard integration.
2K / Multi-Shot Tooling
Parts: Soft-touch buttons, integrated seals, and two-color trims.
Constraint & Solution: Chemical bonding between rigid PC/ABS and soft TPE requires precise temperature control. We use rotary platen designs with isolated thermal zones.
Benefit: Eliminates manual gluing and improves seal durability.

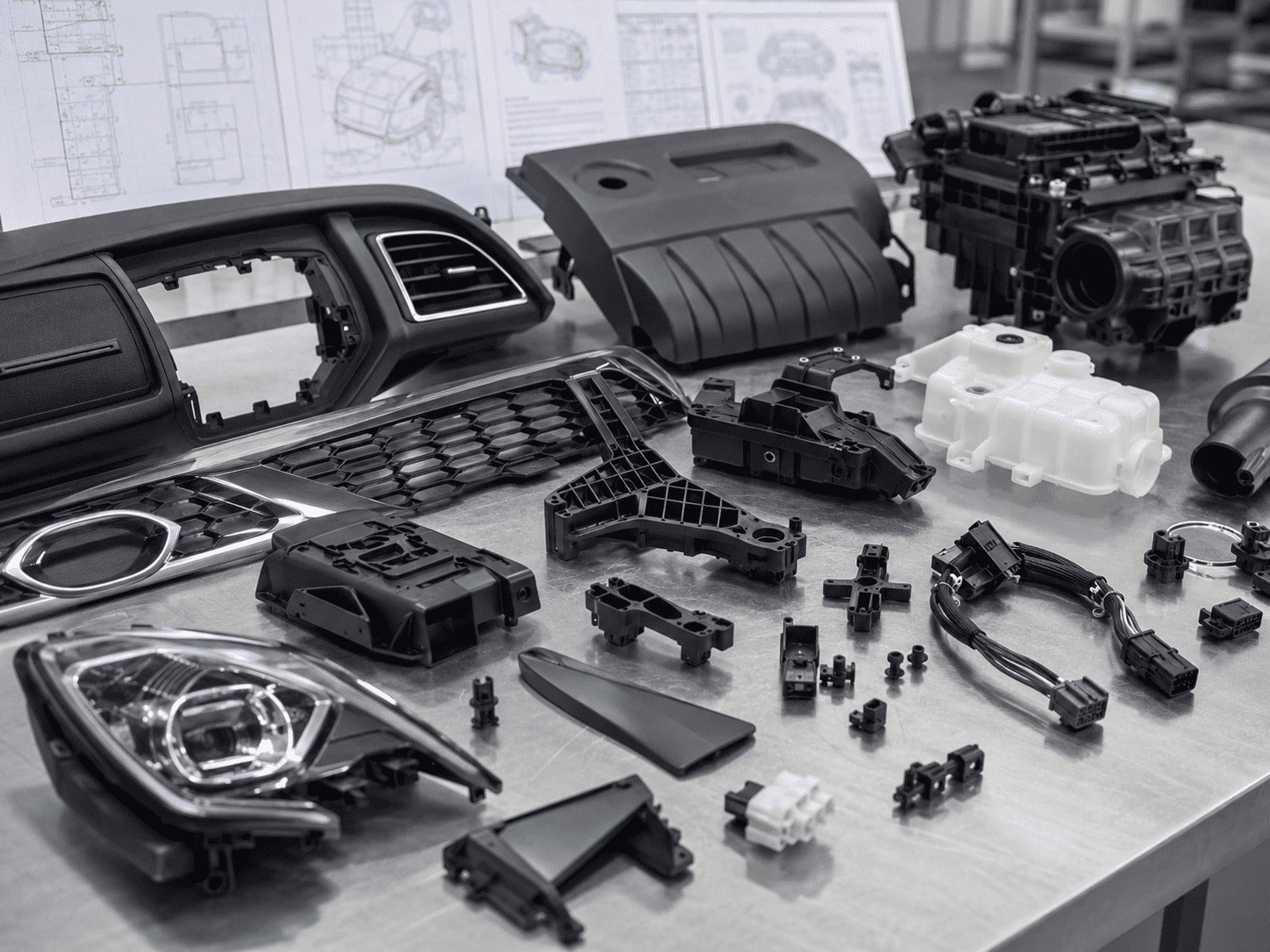

Automotive Injection Molded Parts We Support

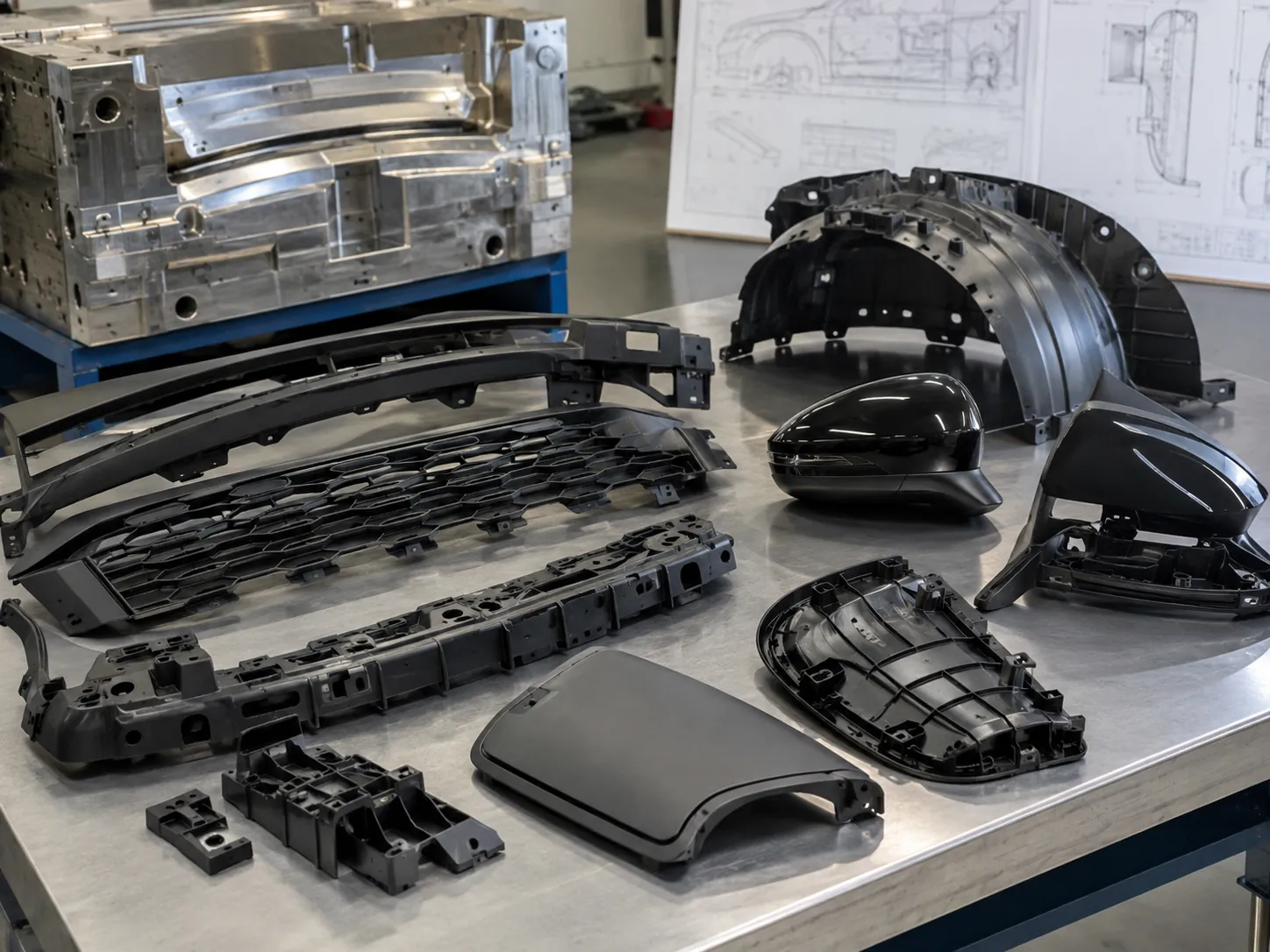

Interior Trim & Functional Components
Door panels, instrument clusters, pillar trims, and hidden mounting clips.
Operators struggle with tight snap-fits if shrinkage is miscalculated. We adjust draft angles and rib thicknesses to ensure tactile feedback without plastic whitening.
Exterior Body & Trim Components
Radiator grilles, bumper brackets, mirror shells, and wheel arch liners.
Outdoor exposure causes thermal expansion. We design sliding cores and mounting slots that accommodate material movement while maintaining flush panel gaps.

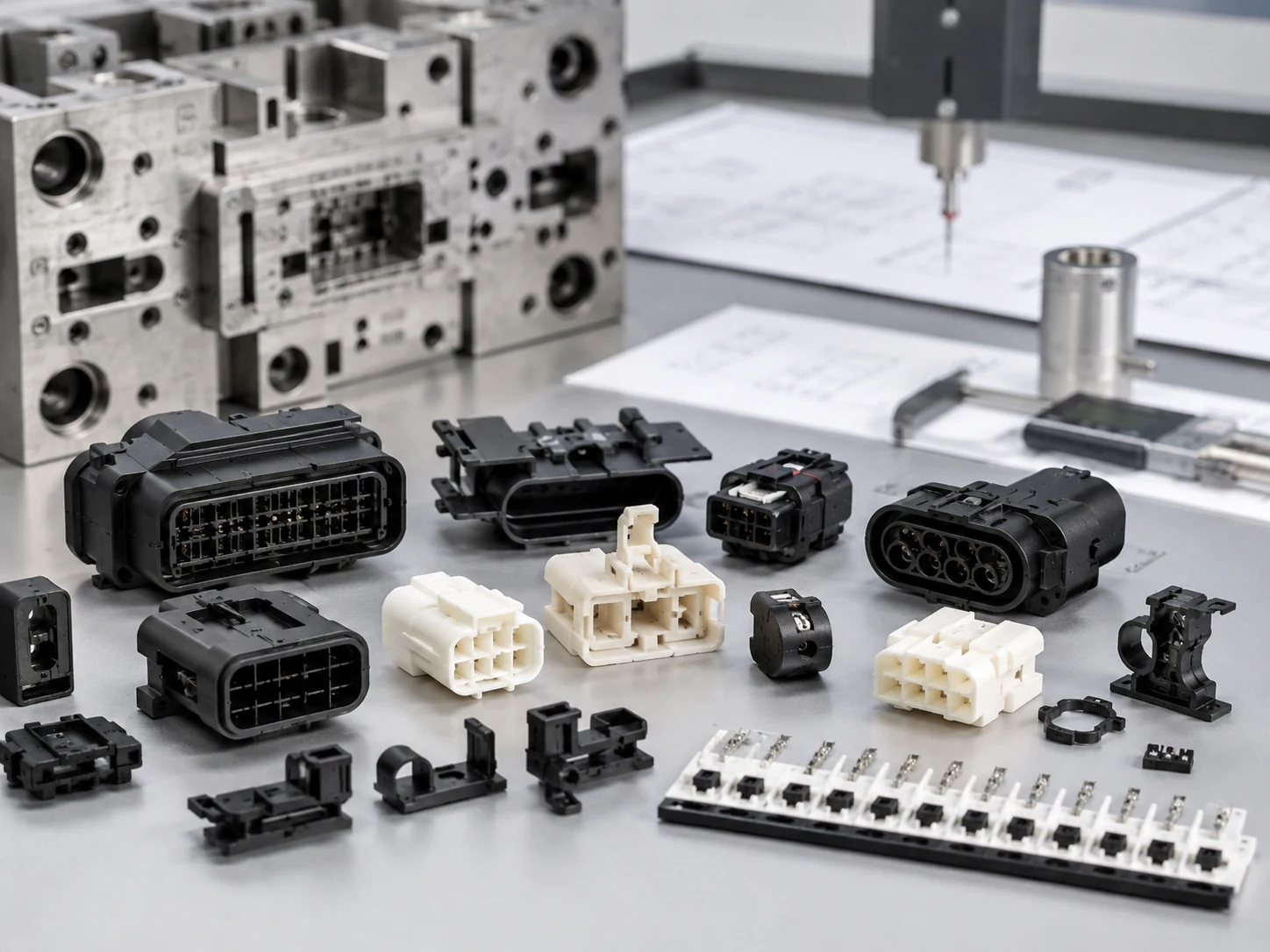

Electrical & Wire Harness Components
Multi-way connector housings, relay bases, and sensor covers.
Flash on a 0.5mm terminal slot ruins the entire harness. We use precision grinding and tight tolerance shut-offs to ensure clean pin insertion.

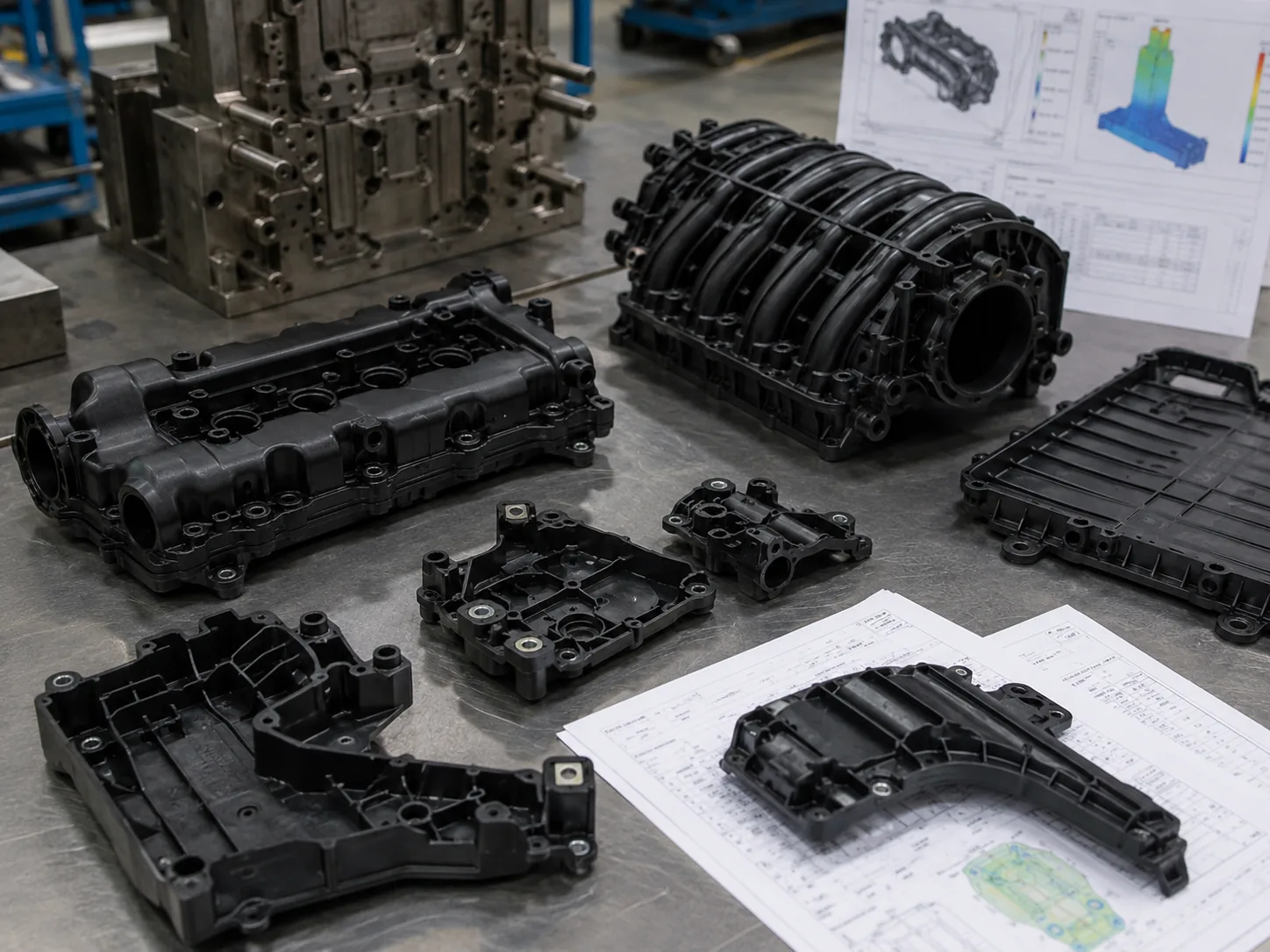

Engine & Under-Hood Components
Valve covers, intake manifolds, and battery trays.
High-glass-filled nylon warps aggressively. We utilize Moldflow to predict fiber orientation and over-bend the steel to achieve a flat final part.

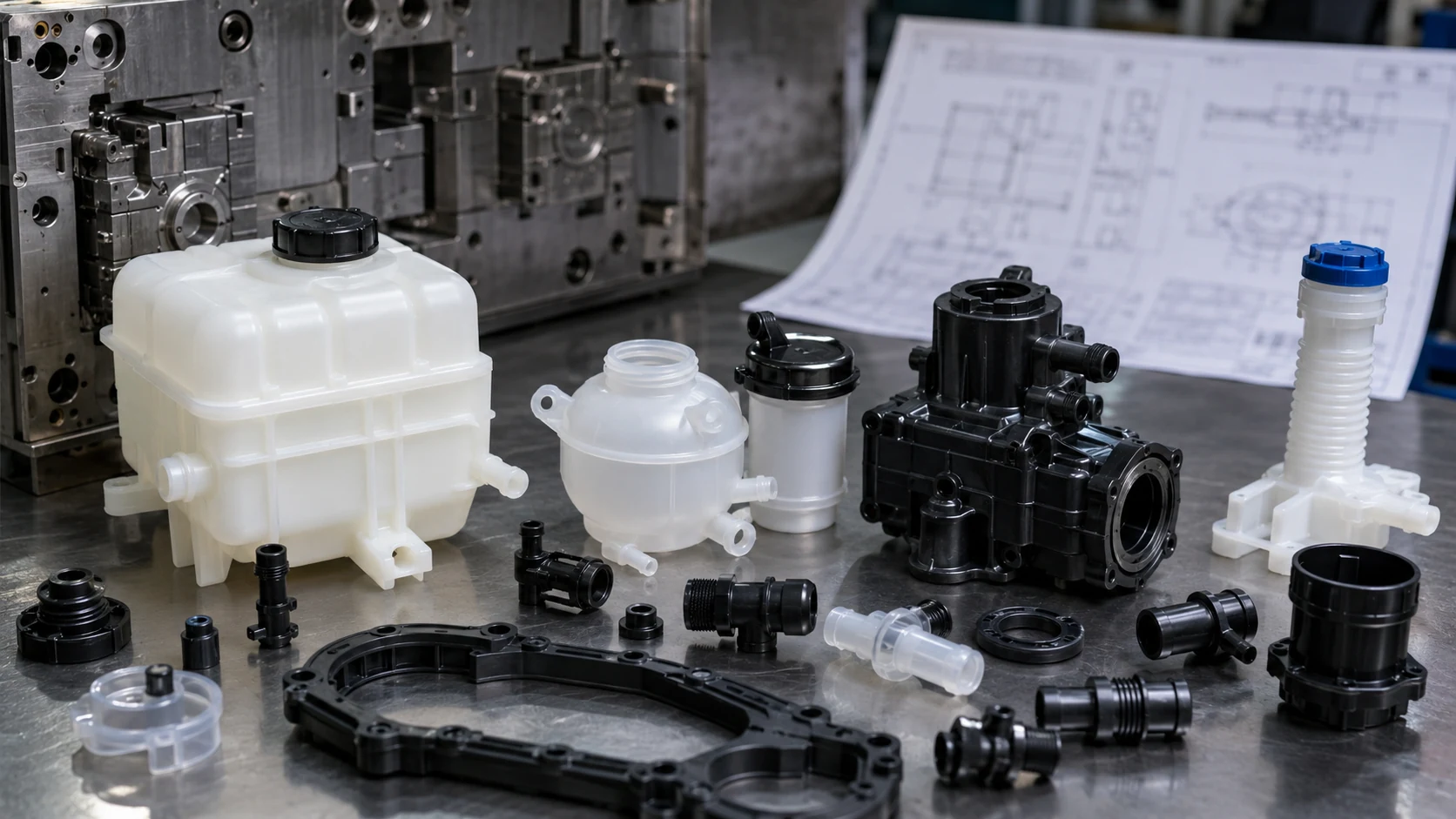

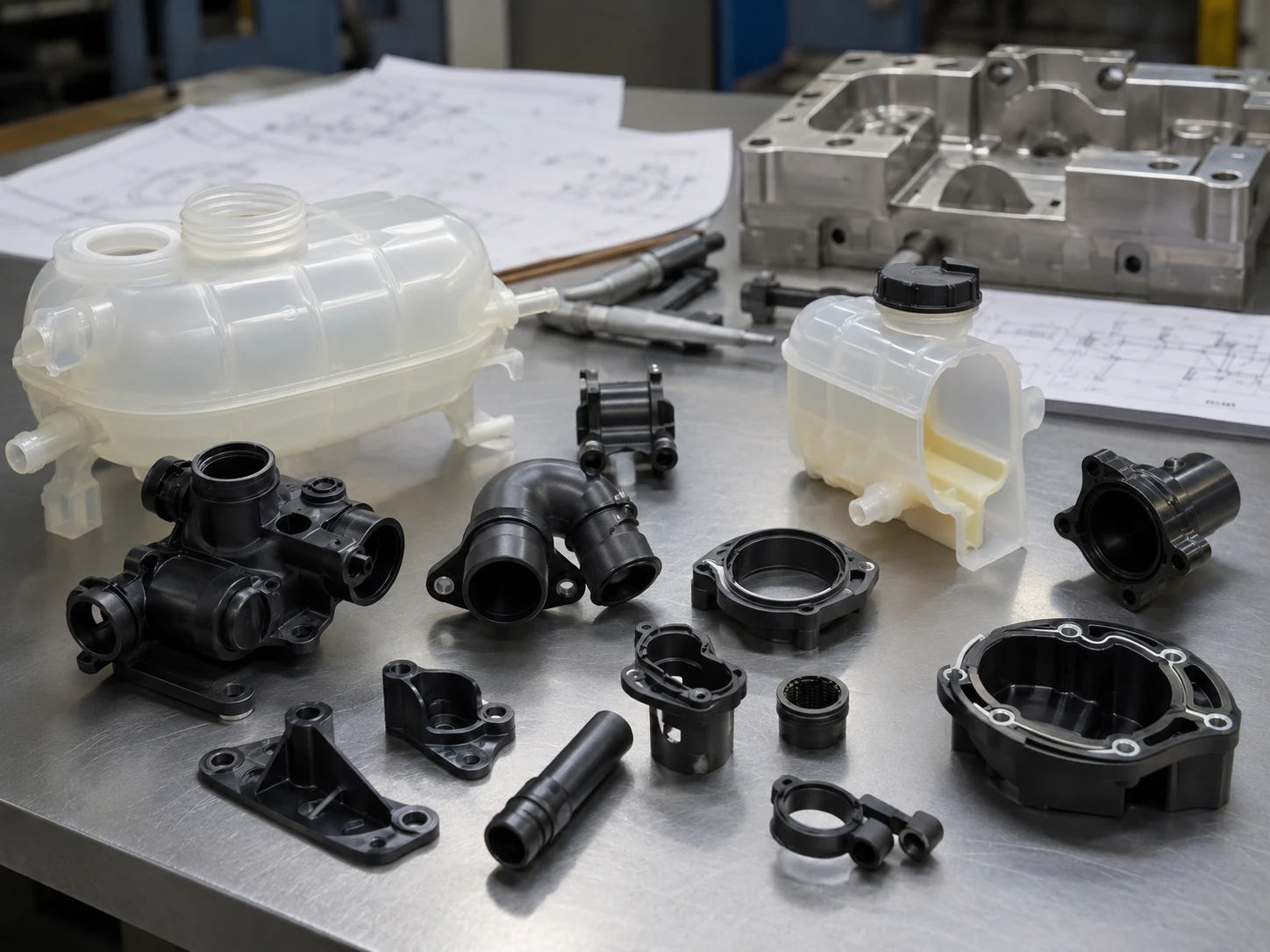

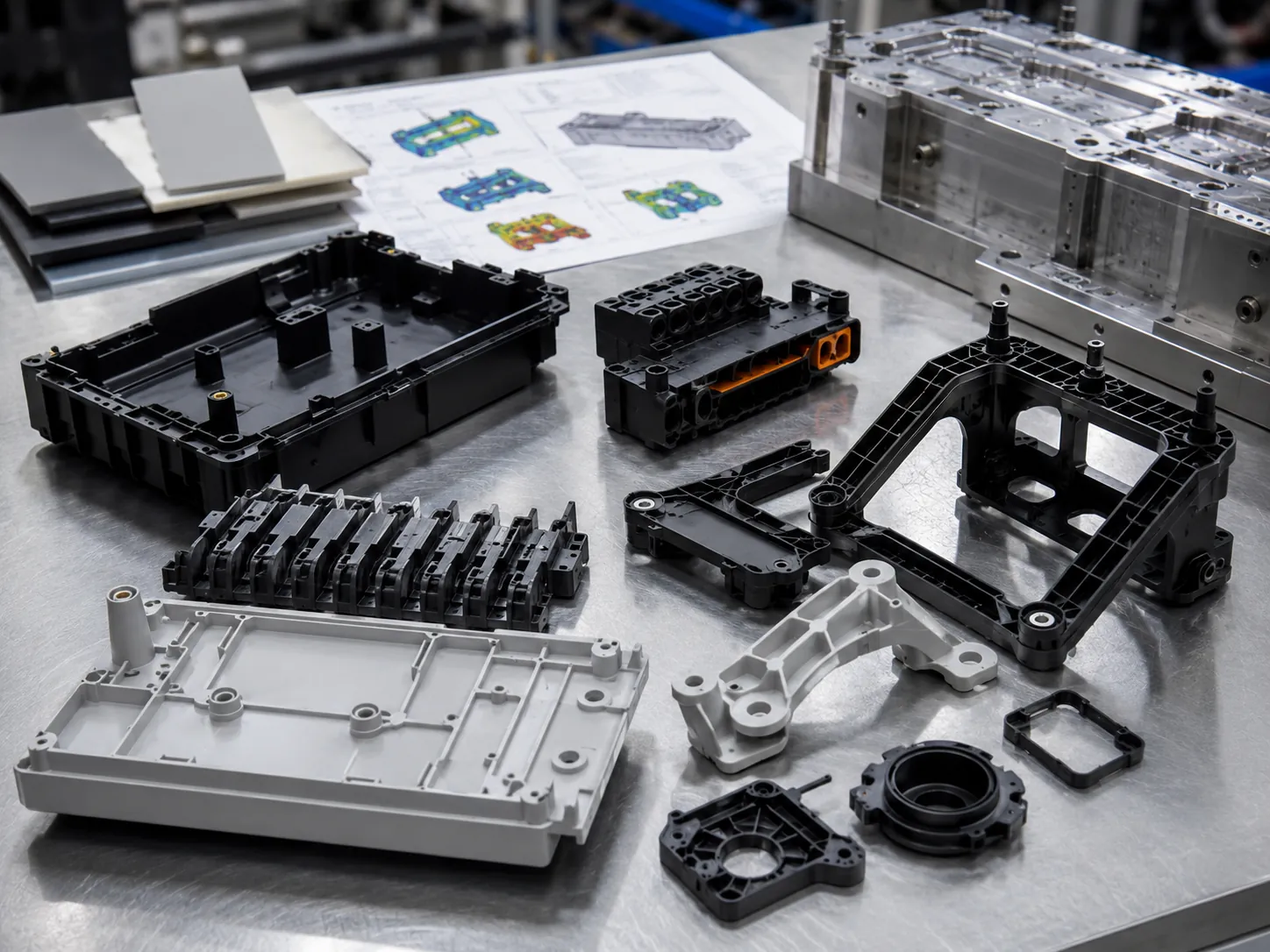

Fluid Handling Components
Coolant expansion tanks, brake fluid reservoirs, and pipe fittings.
Even a 0.1mm warp on a welding flange causes a pressure leak. We prioritize uniform wall thickness and balanced packing pressure to keep flanges perfectly flat.
EV Battery & Lightweight Components
Cell spacers, high-voltage busbar covers, and flame-retardant housings.
V0 flame-retardant resins release corrosive gases during molding. We select corrosion-resistant mold steel (like S136) and add extra venting to prevent tool damage and short shots.
Automotive Injection Molding Resins
Material constraints dictate mold design. A tool cut for ABS will produce out-of-tolerance parts if switched to PA66 due to different shrinkage rates. We lock in the material grade before finalizing the 3D mold layout.
PP Injection Molding
Typical: Door panels, HVAC ducts, console bases.
Constraint: High shrinkage (1.5-2.0%) leads to warpage on large flat areas.
Tooling Action: Oversize the cavity based on specific PP grade and add stiffening ribs.
ABS Injection Molding
Typical: Decorative trims, switch bezels, instrument housings.
Constraint: Prone to sink marks opposite heavy mounting bosses.
Tooling Action: Keep boss thickness to 60% of the nominal wall and optimize holding pressure.
PC/ABS Molding
Typical: Structural interior panels, overhead consoles.
Constraint: High viscosity requires higher injection pressure, increasing flash risk.
Tooling Action: Robust mold base design and rigid support pillars to prevent platen deflection.
PA6 / PA66 Molding
Typical: Engine covers, gears, structural brackets.
Constraint: Glass fibers cause directional shrinkage and premature gate wear.
Tooling Action: Replaceable hardened steel gate inserts and conformal cooling to manage heat spikes.
POM Injection Molding
Typical: Door latches, seat belt components, gears.
Constraint: High thermal degradation risk; off-gassing can cause mold deposits.
Tooling Action: Generous venting layout and streamlined runner systems without dead corners.
PBT Injection Molding
Typical: Sensor housings, electrical connectors, wiper components.
Constraint: Very fast crystallization requires rapid, uniform filling.
Tooling Action: Balanced hot runner systems and precise temperature control units.
PPS / PEEK Parts
Typical: High-temp sensor bodies, thrust washers, ignition parts.
Constraint: Requires mold temperatures exceeding 150°C.
Tooling Action: Specialized oil heating channels and thermal insulation plates on the mold base.
TPE / TPU Overmolding
Typical: Weather seals, cup holder liners, soft-touch grips.
Constraint: Soft material sticks to the core and deforms during ejection.
Tooling Action: Air poppet valves, stripper plates, and textured cores to break the vacuum.
Need help selecting material for your automotive part?
Ask for Material ReviewAutomotive Injection Molding Challenges and Mold Solutions

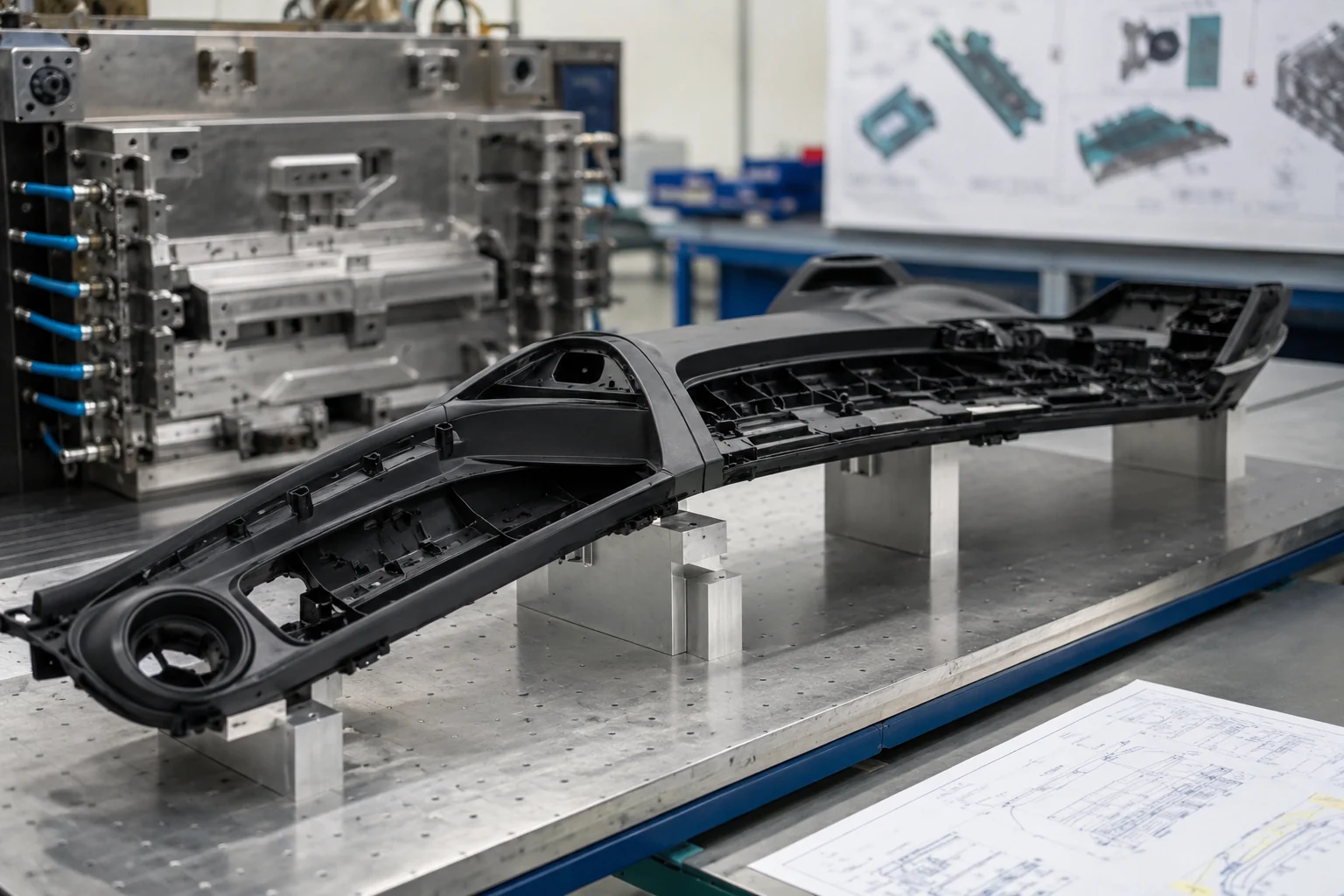

Warpage in Large Automotive Parts
Pain Point: A 600mm dashboard panel bows 3mm in the center, making clip installation impossible.
Engineering Reality: Uneven cooling rates between the core and cavity induce thermal stress.
Tooling Action: Implement conformal cooling lines that follow the part's contour to ensure uniform temperature drop.
Benefit: Lower risk of assembly mismatch, fixture problems and repeated tooling corrections.

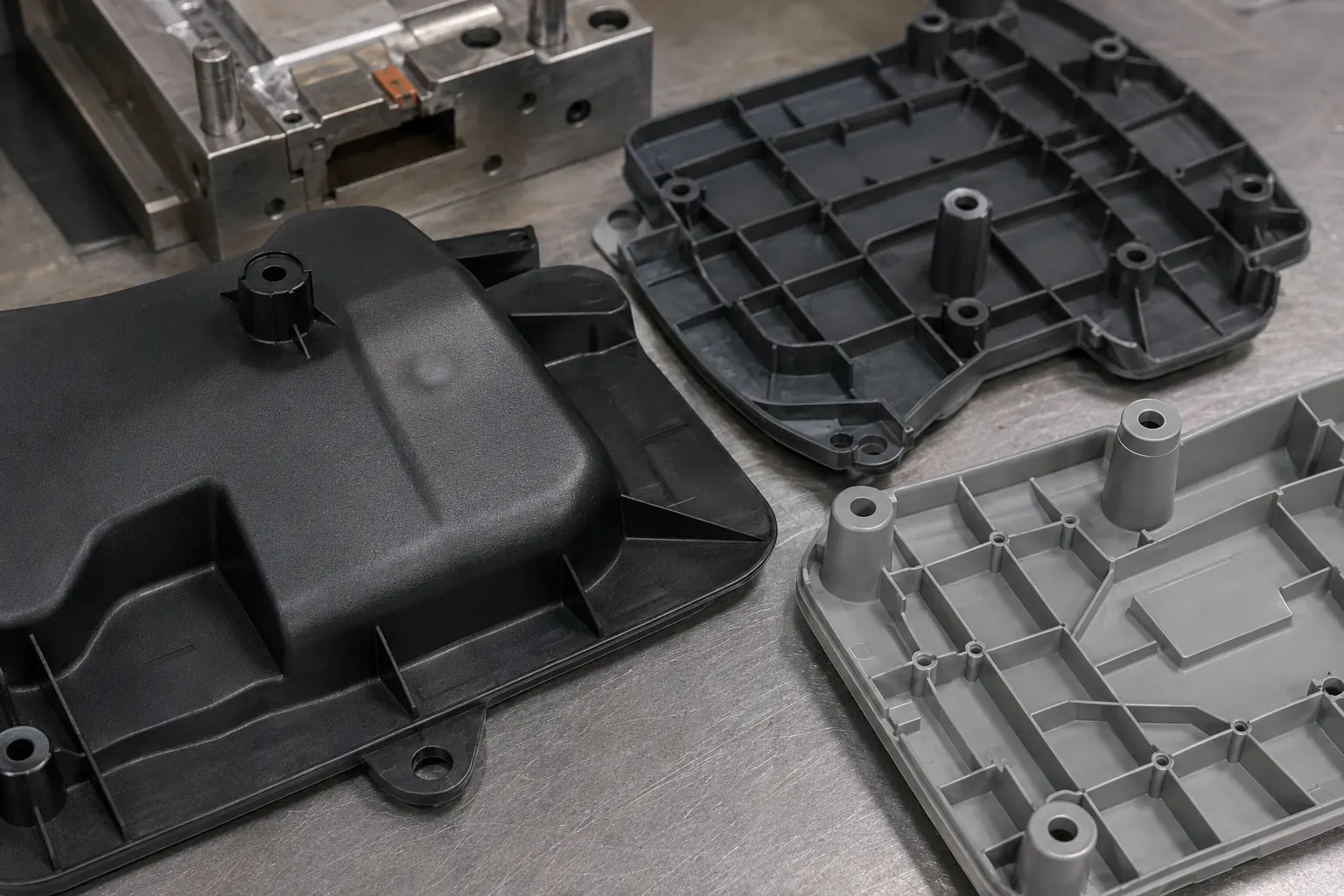

Sink Marks Around Ribs and Bosses
Pain Point: A visible dimple appears on the Class-A surface directly above a screw boss.
Engineering Reality: The thick plastic mass at the boss intersection cools slower, pulling the surface inward.
Tooling Action: Core out the boss base and relocate the gate to pack out the thick section effectively.
Benefit: Better balance between structural strength and surface appearance.

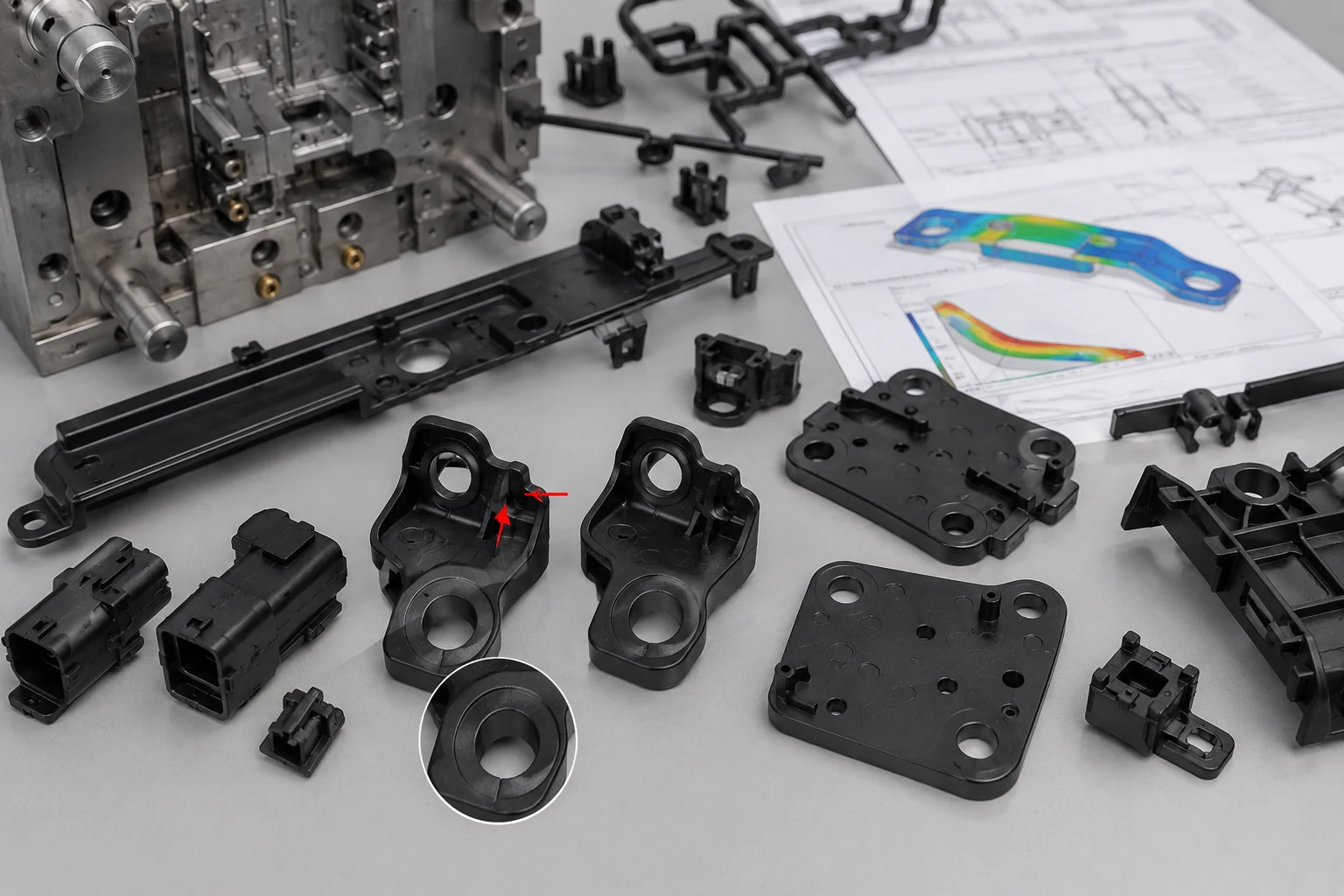

Weld Lines Near Functional Areas
Pain Point: A visible line forms near a critical mounting hole, which snaps under load.
Engineering Reality: Two flow fronts meet cold, failing to entangle polymer chains.
Tooling Action: Adjust wall thickness to alter flow paths, or add overflow wells to push the cold slug outside the functional area.
Benefit: Reduces cosmetic risk and improves strength in critical assembly areas.

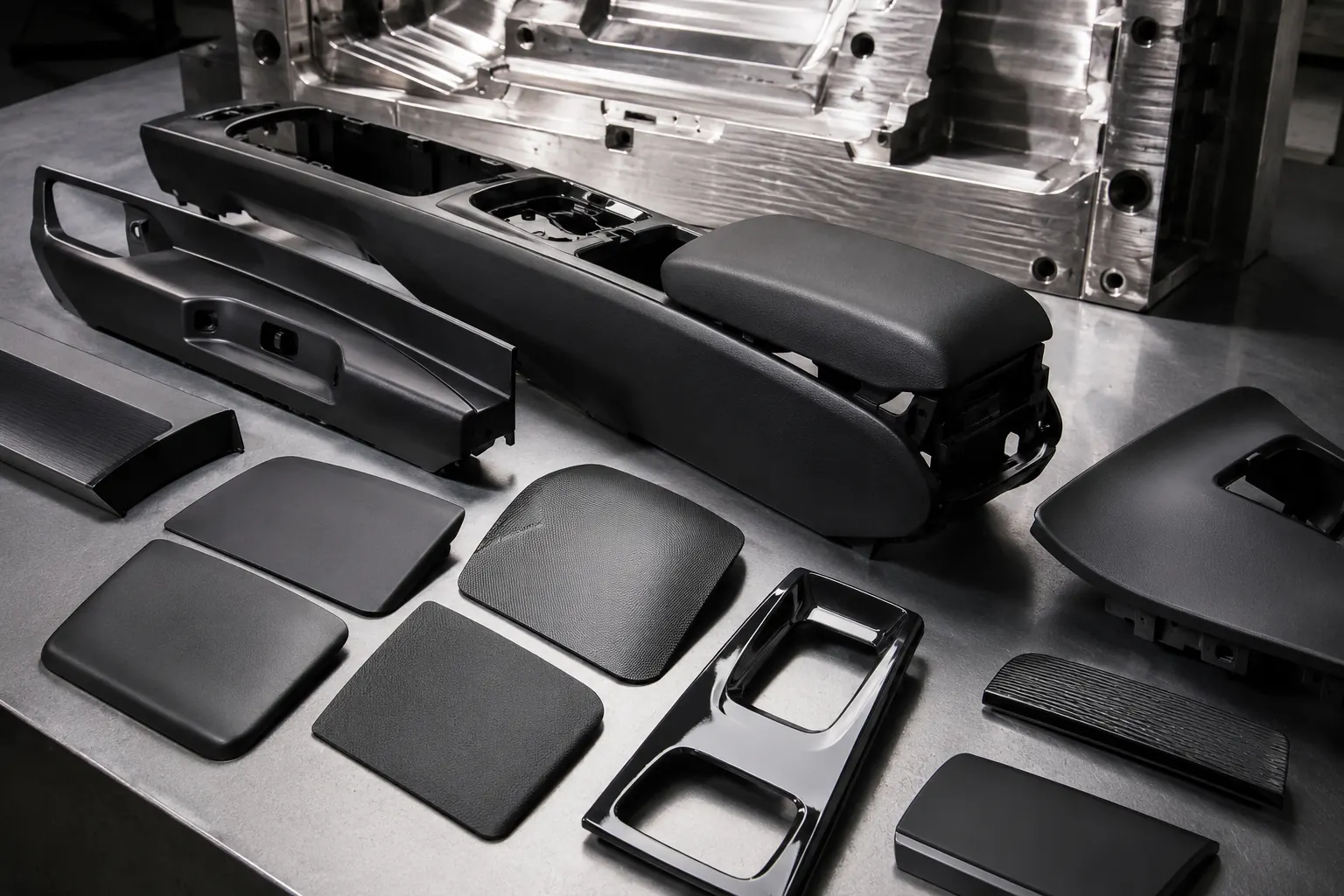

Class A Surface & Texture Consistency
Pain Point: The textured grain on a center console looks stretched and uneven near deep walls.
Engineering Reality: Insufficient draft angle causes the steel to drag and smear the plastic during ejection.
Tooling Action: Specify minimum 3-degree draft for VDI 30 texture and verify with 3D draft analysis.
Benefit: Improves visual approval efficiency for customer-facing plastic parts.

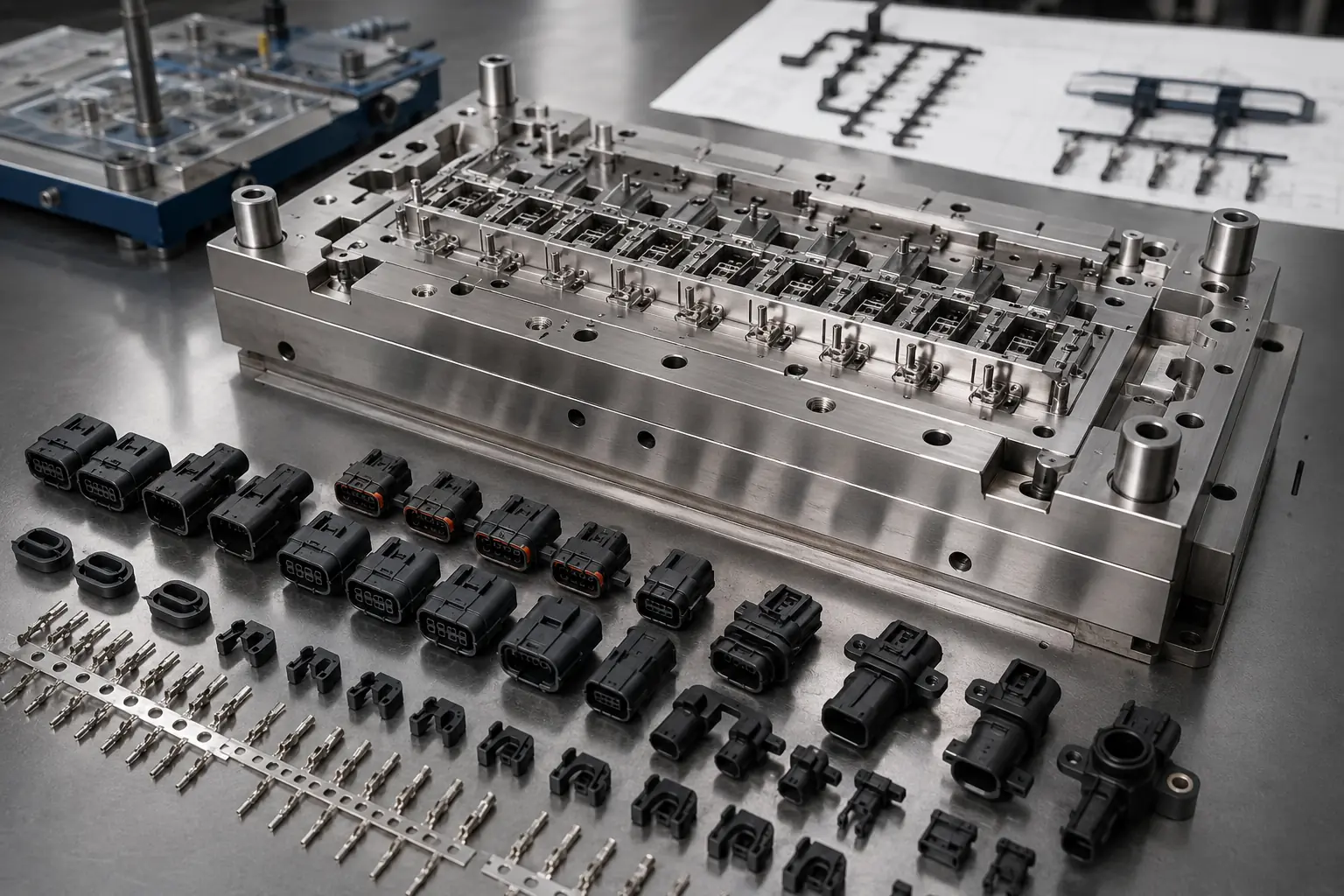

High-Cavitation Connector Mold Balance
Pain Point: In a 16-cavity connector mold, inner cavities flash while outer cavities short-shot.
Engineering Reality: Asymmetrical runner layout causes uneven pressure distribution.
Tooling Action: Design a naturally balanced, geometrically identical runner system and verify with rheological simulation.
Benefit: Supports repeatable production for small automotive electrical components.

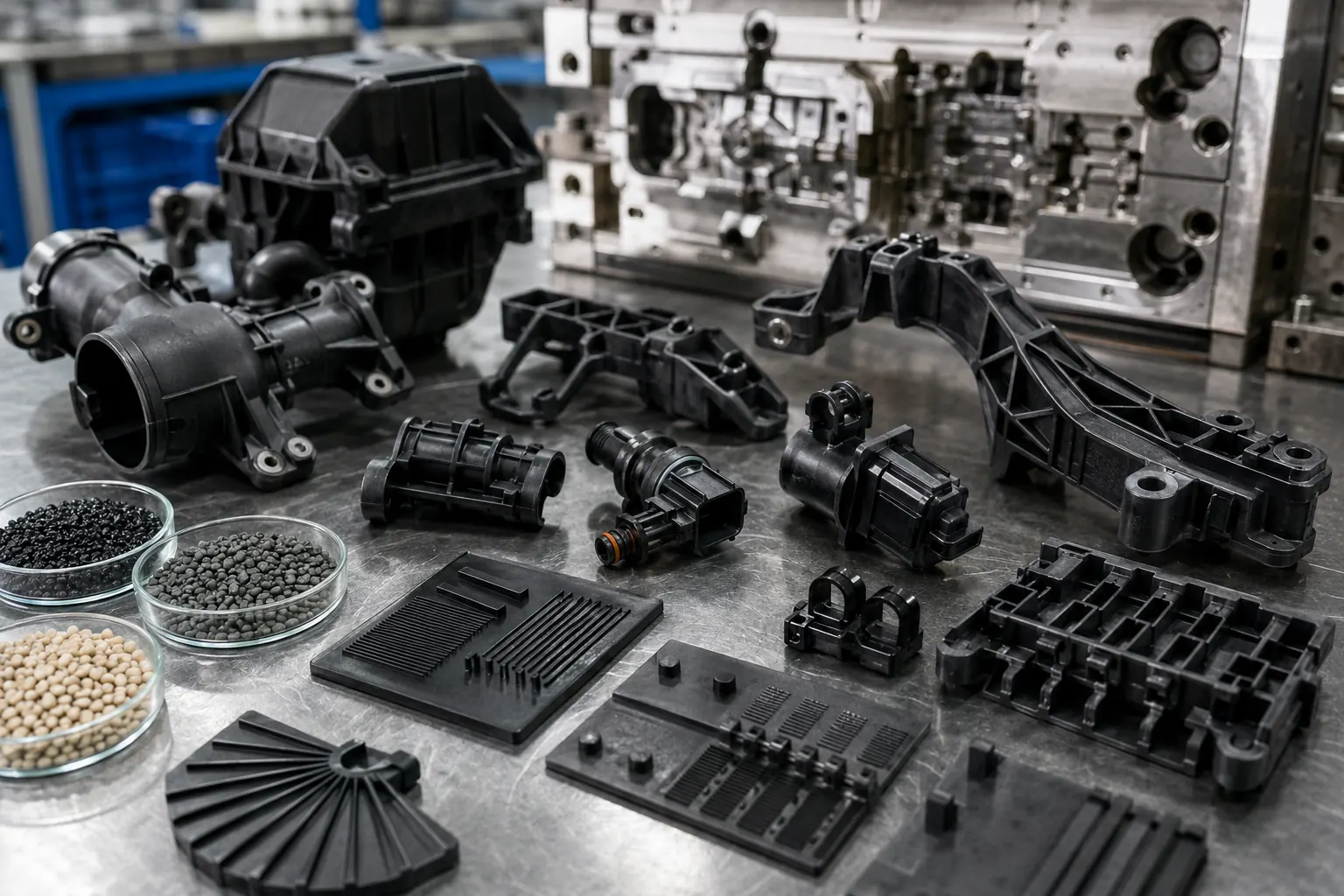

Material Performance Under Exposure
Pain Point: An engine bracket cracks after 500 hours of thermal cycling.
Engineering Reality: Sharp internal corners concentrate stress under thermal load.
Tooling Action: Add generous fillets to all non-mating corners and ensure the gate location aligns glass fibers parallel to the load path.
Benefit: Helps match plastic part design to real automotive working conditions.
Automotive Injection Molding Process
Requirement Audit
We evaluate your 3D STEP file against the selected resin's data sheet, checking target tolerances against standard shrinkage variables.
DFM Optimization
We identify un-moldable undercuts, suggest parting line locations, and propose wall thickness modifications to eliminate sink marks.
Tooling Architecture
We determine the mold base size, cavity layout, hot/cold runner configuration, and select steel grades (e.g., P20, H13, S136) based on volume.

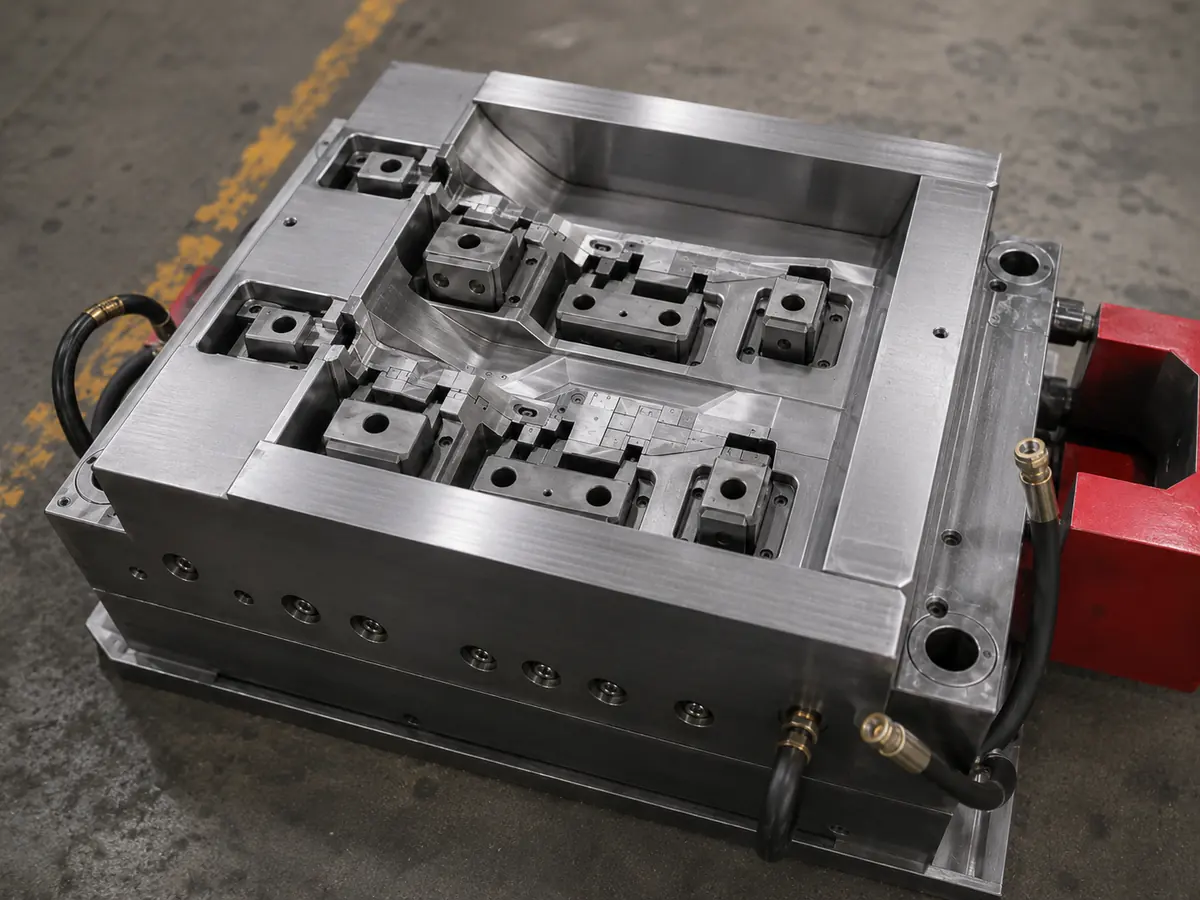

3D Mold Design
Our engineers map out cooling channels, ejection pins, sliders for side-actions, and venting paths, generating a full 2D/3D assembly.
CNC & EDM Machining
We cut the steel using high-speed CNC and precision wire EDM, holding ±0.01mm tolerances on critical shut-off surfaces.

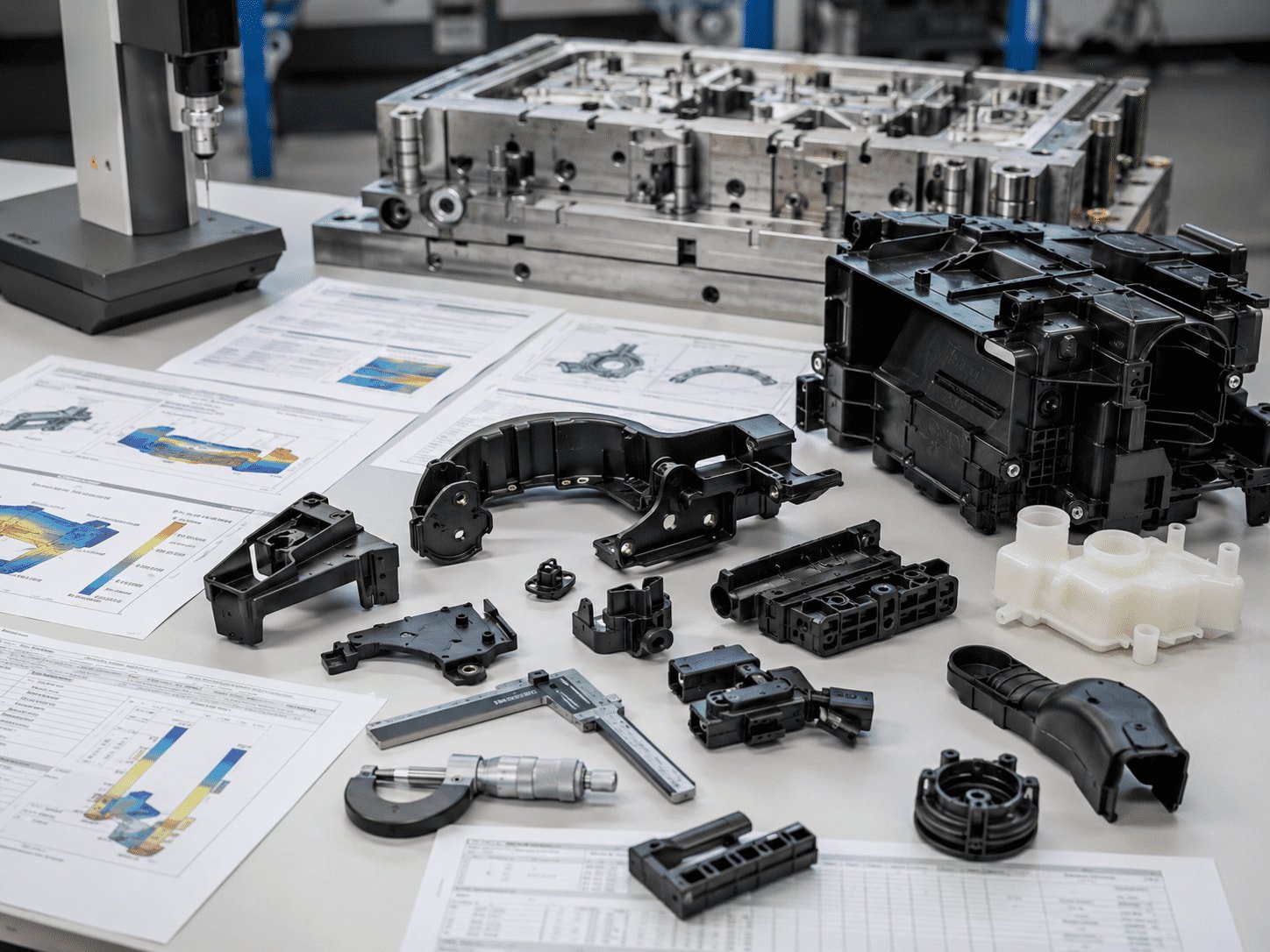

T1 Trial Injection
We mount the mold, dial in temperature and pressure profiles, and shoot the first parts to identify flash, short shots, or sticking.

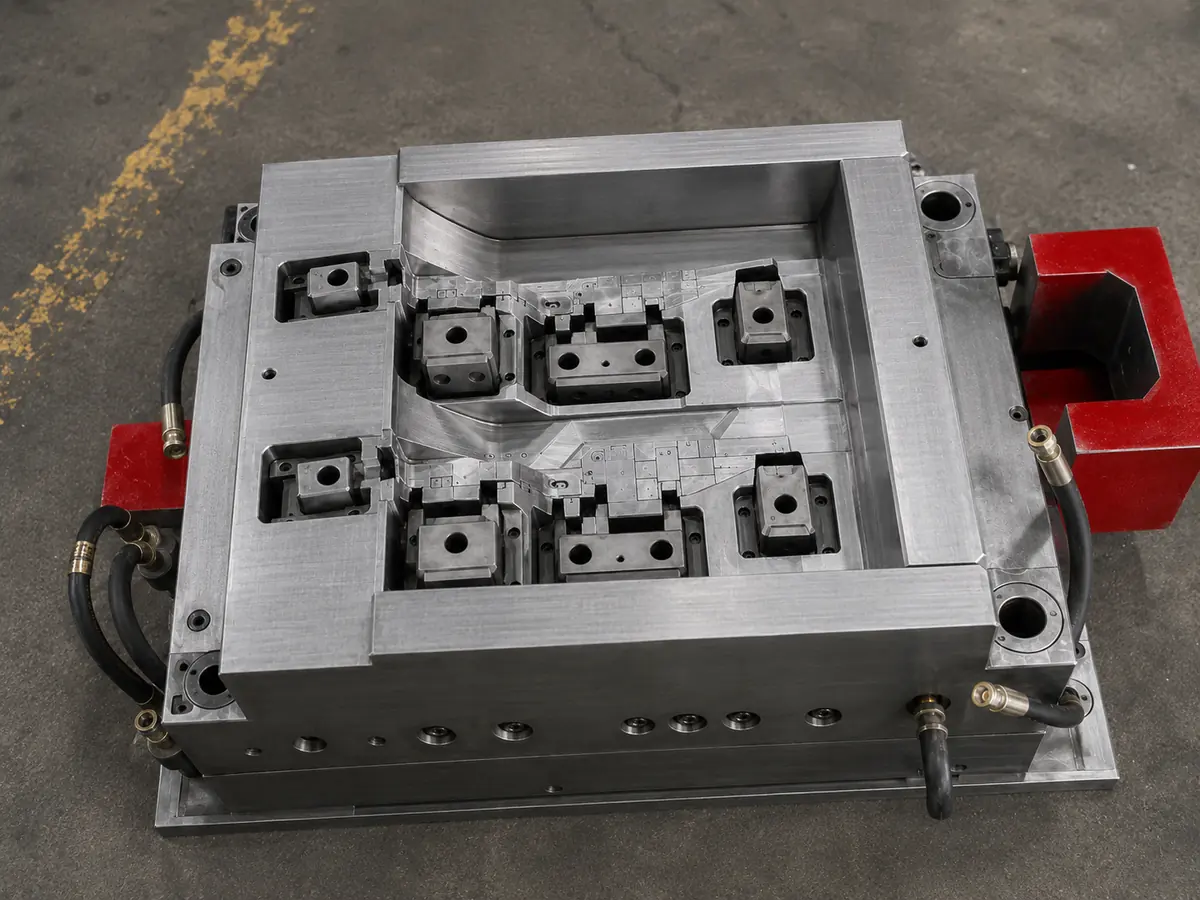

CMM & Tool Tuning
We measure the T1 parts against your 2D drawing. If a dimension is out of spec, we adjust the steel (welding or cutting) until approved.
Start your automotive mold project with drawing review before tooling investment.
Upload Drawing for ReviewAutomotive Interior vs Exterior Injection Molding
| Comparison Item | Automotive Interior Parts | Automotive Exterior Parts |
|---|---|---|
| Typical Parts | Consoles, pillars, bezels, and hidden mounting brackets. | Grilles, mirrors, bumpers, and wheel arch liners. |
| Main Requirements | Tactile feel, low gloss, zero sink marks, and odor control. | UV stability, impact resistance, and thermal expansion management. |
| Material Options | PC/ABS, PP, and TPE overmolds. | ASA, Weatherable PC, and modified PP. |
| Mold Design Focus | Complex textures, hidden gates, and intricate snap-fits. | Large surface polishing, robust ejector layout, and warpage control. |
| Inspection Focus | Visual grain consistency and assembly gap checks. | Drop testing, color-fastness, and mounting point alignment. |
Need different mold strategies for interior and exterior automotive parts?
Discuss Your Automotive PartAutomotive Injection Mold vs General Plastic Injection Mold
Automotive injection molds usually require more detailed review than general plastic molds because vehicle parts must match assembly, surface, durability, safety-related and production requirements.
| Comparison Item | Automotive Injection Mold | General Plastic Injection Mold |
|---|---|---|
| Application | Vehicle-specific environments with intense thermal/mechanical loads. | Consumer goods, generic enclosures, and indoor applications. |
| Design Review | Strict APQP/PPAP requirements and assembly interference checks. | Basic fill-and-pack viability. |
| Material Requirement | High-temperature, glass-filled, or flame-retardant resins. | Standard commodity ABS/PP. |
| Validation | CMM reports, material certs, full dimensional layouts. | Visual approval and basic caliper checks. |
| Tooling Focus | Complex lifters, sequential valve gates, and hardened cavities. | Standard two-plate cold runner designs. |
| Project Communication | Weekly Gantt charts, DFM iterations, and detailed trial reports. | Standard order updates. |
For automotive projects, the mold quote should not be based only on mold size. It should include part function, material, tolerance, assembly, approval process and production volume.
Rapid Tooling vs Production Mold for Automotive Injection Molding
| Item | Rapid Tooling for Automotive Prototypes | Production Automotive Mold |
|---|---|---|
| Best For | Physical fit-checks, crash testing, and low-volume pilot runs. | 100k+ annual volume and automated assembly lines. |
| Tooling Goal | Fastest time-to-part with minimal upfront cost. | Lowest piece price, zero downtime, and consistent cycle times. |
| Cavity Count | Single cavity, often aluminum or soft steel (P20). | Multi-cavity, hardened tool steel (H13/S136). |
| Material | Often limited to easier-flowing prototype resins. | Exact production-intent engineering grades. |
| Inspection | Basic calipers and visual check. | Automated vision systems, strict CMM routines, and CPK data. |
| Best Choice | When geometry is subject to change. | When design is frozen and volume is secured. |
Not sure whether to start with rapid tooling or a production mold?
Ask for Tooling Strategy2K, Two-Shot and Insert Molding for Automotive Parts
2K / Two-Shot Automotive Injection Molding
HVAC dials with soft grips, two-color buttons, and integrated gaskets.
Precise rotary platen alignment, preventing first-shot remelt, and managing two distinct shrinkage rates.
Eliminates manual assembly labor and prevents gaskets from falling out.
Automotive Insert Molding
Threaded brass inserts in manifolds, and stamped metal terminals in sensor housings.
Securing the insert against injection pressure (up to 15,000 PSI) without crushing it.
Provides robust metal threads or electrical pathways within a plastic body.
Overmolding for Automotive Components
TPE shock bumpers over rigid ABS brackets, and soft-touch door handles.
Ensuring chemical adhesion between substrate and overmold, and preventing flash over the rigid part.
Enhances ergonomics and dampens vibration without mechanical fasteners.
Have a multi-material automotive part?
Review 2K / Insert Mold FeasibilityEvaluating an Automotive Tooling Partner
A tooling quote is just a number. The real cost lies in production downtime, assembly rework, and delayed launches. You need a partner who engineers the risk out of the mold before the steel is cut.
Specific Component Experience
Do they understand the difference between a cosmetic dashboard bezel and a high-heat intake manifold?
Proactive DFM
Do they point out that your 3mm rib will cause a sink mark on the 2.5mm main wall?
Simulation Capability
Do they run flow analysis to predict where the weld lines will form around your mounting holes?
Resin Familiarity
Do they account for the 2% shrinkage of PP versus the 0.5% shrinkage of PC/ABS?
Precision Machining
Can they hold the ±0.01mm tolerance required for a waterproof connector shut-off?
Trial Transparency
Do they send raw T1 samples with a detailed defect report, or do they hide the flash?
Documentation
Can they provide the steel certs, heat treat reports, and CMM data required for your PPAP?
Technical Communication
Do they say 'it is hard to make' or do they provide a marked-up PDF showing exactly where to add draft?
RFQ Checklist
Ask visitors to prepare:
- 3D CAD file
- 2D drawing with critical dimensions
- Material grade or application requirement
- Annual quantity
- Interior / exterior / under-hood / connector / lighting application
- Surface requirement: texture, matte, gloss, visible or hidden
- Assembly requirements
- Tolerance and inspection requirements
- PPAP / APQP / FAI / CMM requirements if applicable
- Target schedule and production plan
Send these files and requirements for a more accurate automotive mold quote.
What Affects Automotive Injection Mold Cost?
Automotive injection mold cost depends on part size, complexity, material, surface requirement, validation level, cavity count and production volume. A realistic quotation should evaluate both tooling cost and production risk.
1: Component Geometry
Deep drafts, side-action undercuts, and internal threads require sliders and lifters, increasing mold base size.
2: Tooling Architecture
A hot runner system adds upfront cost but eliminates cold sprue waste and reduces cycle time.
3: Resin Abrasiveness
Glass-filled nylons require hardened tool steel (H13) and wear-resistant coatings, increasing machining time.
4: Surface Finish
Achieving an SPI A2 optical polish or a specific VDI texture requires hours of manual benchwork.
5: Cavitation Strategy
A 4-cavity mold costs more than a 1-cavity, but divides the piece price by four.
6: Tolerance Demands
Holding ±0.02mm requires slow, precision wire EDM and multiple CMM verification loops.
7: Validation Requirements
Full PPAP documentation, capability studies (CPK), and custom inspection gauges add engineering overhead.
8: Expected Tool Life
A Class 101 mold guaranteed for 1 million shots requires premium steel and robust interlocking features.
For a realistic cost estimate, send CAD files, material, surface requirement, annual volume and validation needs.
Get Itemized RFQValidation & Inspection Protocol
Automotive components are strictly evaluated on dimensional accuracy, assembly interference, and cosmetic consistency. We document the entire trial process so you can verify the mold's performance remotely.
Quality Flow
-
CAD Feasibility Audit
-
DFM Risk Mitigation
-
Cooling & Ejection Layout Review
-
Steel Hardness Verification
-
CNC/EDM Tolerance Check
-
Mold Base Assembly Verification
-
T1 Injection Trial
-
Visual Defect Mapping
-
CMM Dimensional Layout
-
Tooling Adjustment Strategy
-
T2 Sample Verification
-
Final Export Preparation
Project Documents Support
Need clear trial feedback before approving an automotive mold?
Start Mold Trial ReviewA Technical Tooling Partner for Global Manufacturing
Pre-Machining Risk Mitigation
We don't just cut your CAD. We analyze wall transitions, draft angles, and gate locations to eliminate sink marks and warpage before steel is ordered.
Application-Specific Engineering
A high-heat engine cover requires different steel, venting, and cooling strategies than a cosmetic interior bezel. We tailor the tool to the environment.
Precision Connector Capabilities
For multi-pin housings, we utilize precision wire EDM to ensure flash-free shutoffs and tight-tolerance terminal retention.
Transparent Remote Validation
We provide unedited trial videos, detailed defect mapping, and comprehensive CMM reports so you can approve the tool without a factory visit.
Material Processing Expertise
We understand how glass-filled nylons warp, how POM off-gasses, and how PC/ABS shrinks, adjusting our mold designs accordingly.
Comprehensive Project Handoff
Export molds ship with 2D layouts, electrode data, cooling schematics, and spare parts, ensuring your local maintenance team has everything they need.
Send your automotive part drawing and project requirements for a mold feasibility review.
Related Automotive Injection Molding Capabilities
Injection Molding Services
For custom molded plastic parts from prototype to production.
Custom Mold Manufacturing
For custom mold design, CNC machining, EDM, assembly and mold trial support.
Automotive Plastic Tooling
For vehicle plastic parts requiring material, mold and production review.
2K/Multi-Shot Molding
For hard-soft, multi-color or multi-material automotive components.
Insert & Overmolding
For automotive parts with metal inserts, terminals, threaded bushings or reinforced assembly areas.
Precision Connector Molds
For connector, electronics and small precision plastic part tooling.
PA66/Nylon Molding
For PA6, PA66 and glass filled nylon automotive components.
High-Temp PEEK Molding
For high-temperature automotive or industrial plastic parts when project requirements justify the material.
Automotive Injection Mold FAQ
What defines an automotive injection mold?
What vehicle components are suitable for this process?
Which resins are commonly processed?
How do I evaluate a tooling supplier?
What drives the cost of the mold?
How does automotive tooling differ from consumer goods tooling?
Can you build molds for high-density connectors?
What is 2K molding in an automotive context?
How do you control warpage on large panels?
Do you provide PPAP documentation?
Is rapid tooling viable for automotive projects?
What data is required for an accurate tooling quote?
Initiate Your Tooling Project
Upload your STEP files, material specifications, and volume requirements. Our engineering team will return a detailed DFM risk assessment and an itemized tooling quotation.
Direct Contact
-
Annie@gbminjection.com
-
+86 15268369865
-
Room 101, Jiumo Technology Park, Gangsheng Road, Yabian Village, Shajing Street, Baoan District, Shenzhen City
